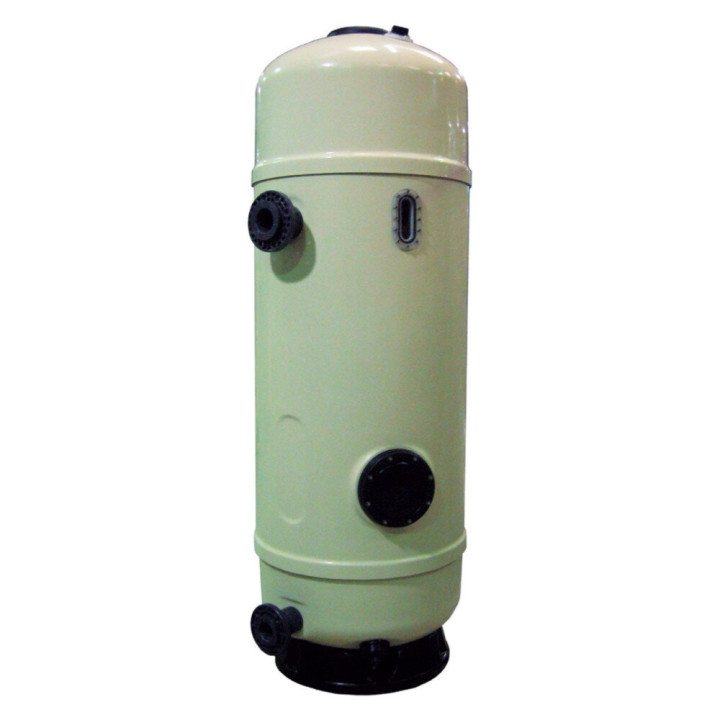

Pool filter - High performance - Side inspection

Pool filtration system Filter Standard 2011 Ø 450.

Glass fiber reinforced polyester (GRP) laminate filter.

Monolayer or multilayer filling.

Includes side port for inspection.

Standard color ivory.

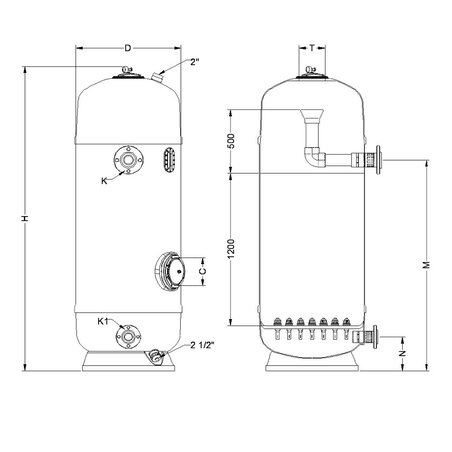

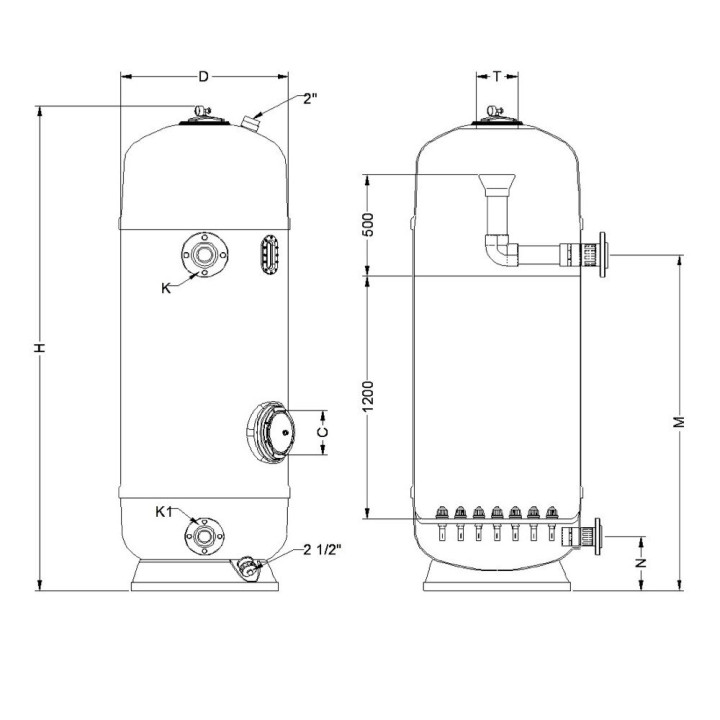

FEATURES.

• Diameter Ø (M): 0,650.

• Height (M): 2,300.

• Filter bed height (M): 1,200.

• Manometer pressure (Bar): 2,5.

• Connections (M): 0,090-0,075.

• Capacity at 30m3/h/m2 m3/h: 10.

• Anthracite Multilayer Charge 0,8 1,6 mm l: 148.

• Sand Multilayer Charge 0,4 0,8 mm Kg: 160.

• Silica gravel multilayer charge 1 2 mm Kg: 46.

• Single-layer sand charge 0,4 0,8 mm Kg: 451.

• Silica gravel monolayer charge 1 2 mm Kg: 46.

• Sku: 08142P-Filtration.

DESCRIPTION:.

It is capable of handling flows of 10000 l/h with a maximum operating pressure of 2,5 bar.

Complies with DIN 19643/19605.

Available with plate system (0,5 mm).

Equipped with spy visor, top cover for sand loading Ø 200 mm and side inlet Ø 200 mm or Ø 400 mm depending on the model.

Water drain 2 1/2.

Pressure gauge, manual air and water discharge.

Interior in PVC and PP.

A4 screws and EPDM gaskets.

Compatible with sand and glass.

Options: Vinylester coating (resistance to ozone concentrations <0,4ppm and max temp 40oC).
