Pool filter 6-way selector valves

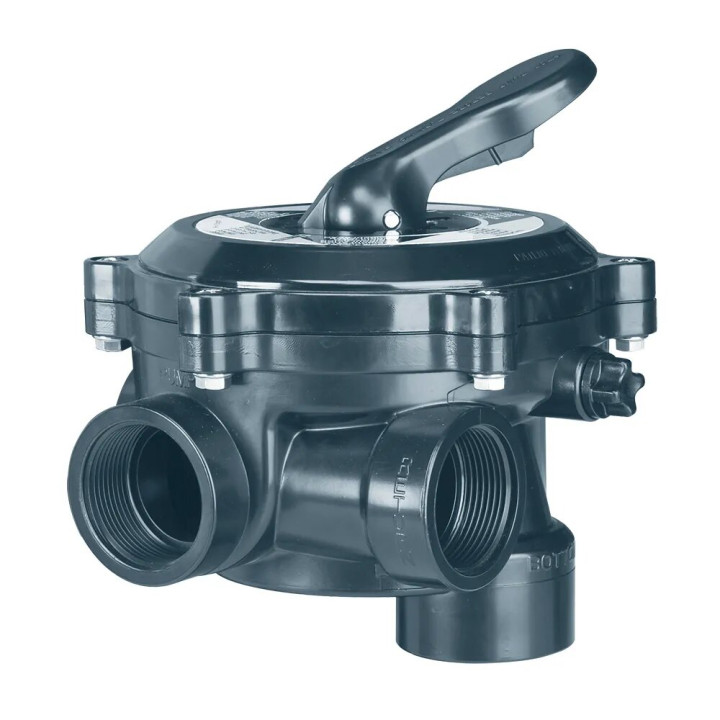

Pool filtration system CLASSIC 2” selector valve.

Six-way manual multiport valves to perform different functions in a hydraulic circuit.

Its basically functional design offers a wide range of coupling possibilities on any installation with Astralpool filters, ensuring perfect watertightness and easy handling.

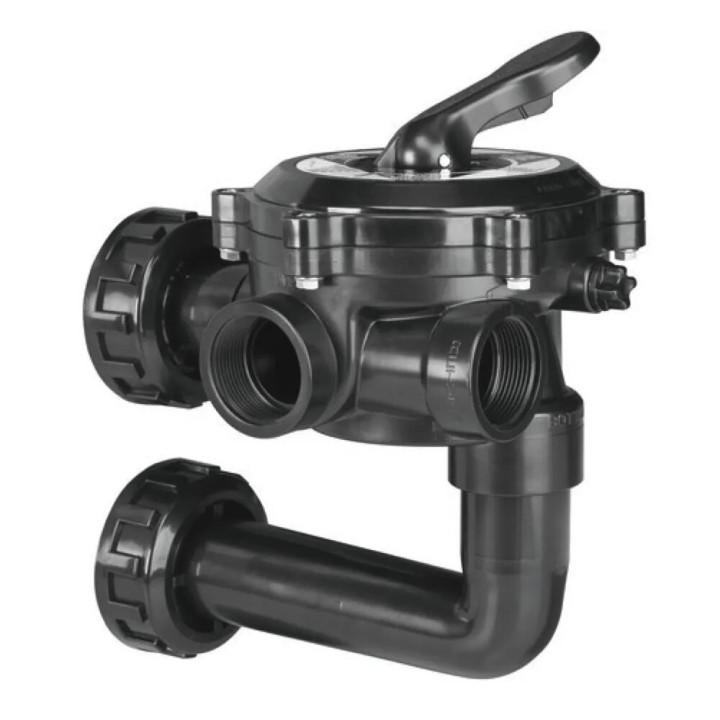

Variant 3 valve, commonly used for filters with side outlet valveFeatures:.

- Body, cover and handle in injection molded ABS.

- Distributor in PPO.

- EPDM gaskets and stainless steel metal elements.

- Polycarbonate sight glass.

- Easy installation.

- Available with BSP or NPT thread.

- With filter connection.

- Maximum working pressure: 3,5 kg/cm2.

TECHNICAL FEATURES.

• Width (M): 0,237.

• Height (M): 0,211.

• Height with handle (M): 0,317.

• Manometer pressure (Bar): 3,5.

• Connection width Ø(M): 0,247.

• Distance between connections (M): 0,230.

• Connections Ø(M): 2”.

• Volume (m2): 0,150.

• Weight (kg): 22,7.

• Sku: 07444-Filtration.
