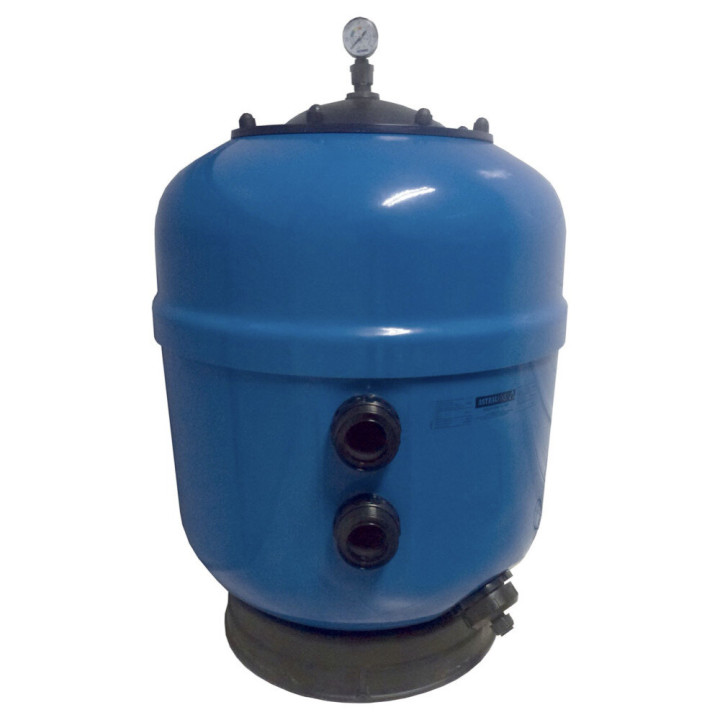

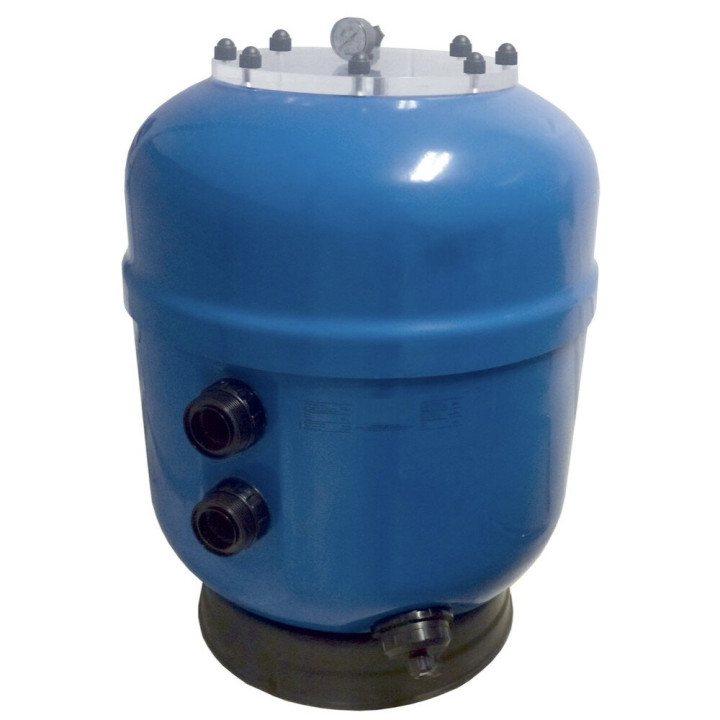

Laminated pool filters - EUROPE Pro and Pro Long

Why This Specific Product Stands Out

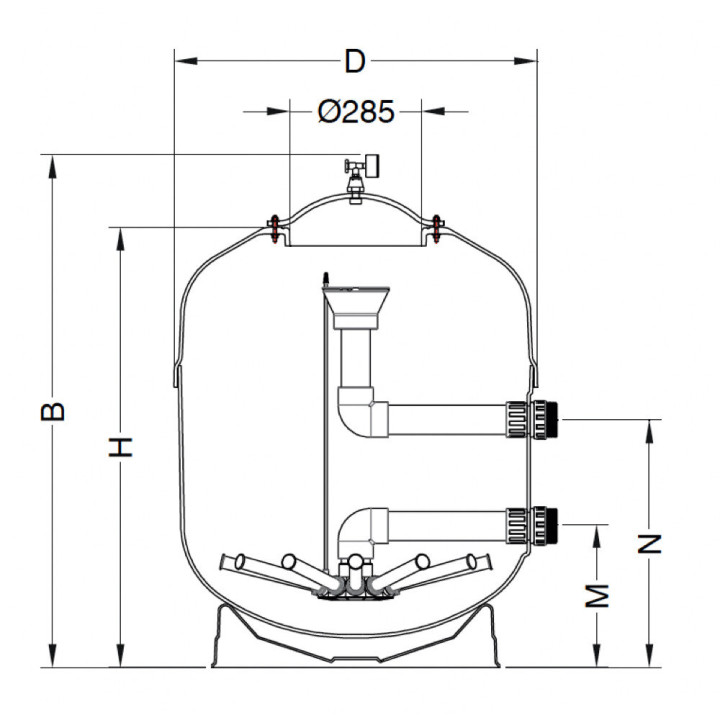

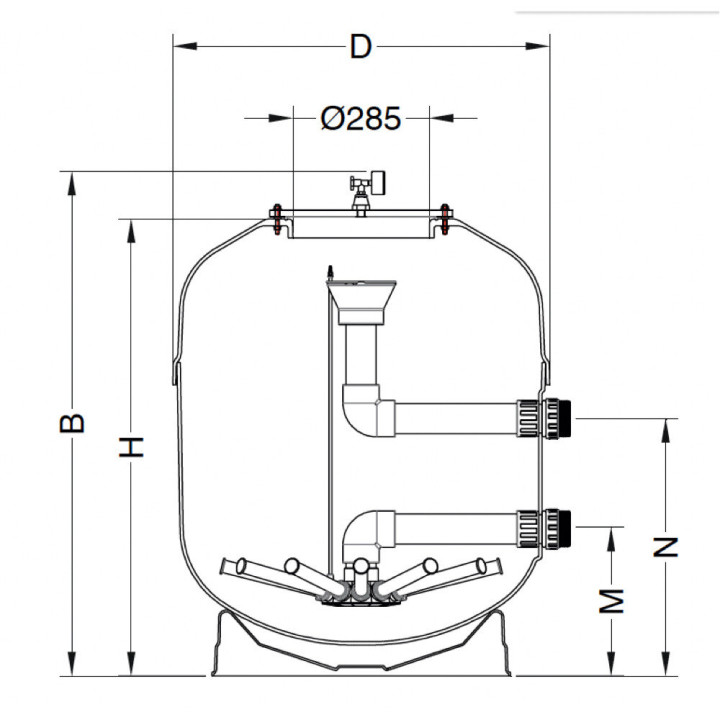

EUROPE Pro filters use laminated polyester resin reinforced with fiberglass, a construction chosen for structural rigidity and resistance to fatigue under pressure. The internal hydraulic design uses a cone diffuser and reinforced collector arms to distribute water evenly across the filtration bed. This uniform flow protects the media, improves filtration efficiency, and reduces channeling over time.

The EUROPE Pro Long version goes further by increasing the filtration bed height by about 25 percent. This added depth improves dirt retention, extends filtration cycles, and reduces wash frequency. It is the right choice when pools operate longer hours or when water quality demands higher consistency.

Technical Excellence and Build Quality

Materials and Construction

• Laminated fiberglass and polyester resin body
• Filter color RAL 5015 for outdoor and technical room visibility
• Polyester or methacrylate top cover with screw fixing
• Reinforced one inch collector arms with fiberglass
• Cone diffuser for balanced water distribution

Performance Specs

• Maximum working pressure 2.5 bar
• Top access opening diameter 285 mm
• Internal piping PN 16
• Sand and glass media compatible
• Standard filtration velocity 50 m³ per hour per m²
• Flow range from 9,500 l per hour up to 30,000 l per hour depending on model

Compliance and Safety

EUROPE Pro filters comply with EN 16713-1 requirements for residential pool filtration systems. Design limits, pressure ratings, and operational guidance follow European safety and performance standards for pool equipment.

Getting the Best Results

Install the filter on a flat, level base with adequate ventilation and drainage. Match pump flow to the selected model to keep filtration velocity within recommended limits. Load filtration media carefully, respecting granulometry and bed height. Perform an initial backwash before normal operation.

• Do check pressure gauges regularly and backwash when differential pressure rises
• Do use calibrated sand or glass media with correct grain size
• Do keep operating pressure well below maximum limits
• Do not exceed recommended backwash flow rates
• Do not operate without proper air purging

Reliability You Can Trust at LordsWorld

Every EUROPE Pro and Pro Long filter supplied by LordsWorld is original, traceable, and supported by technical expertise. Orders ship from EU stock with secure checkout and professional handling. If compatibility questions arise, our team reviews technical details before dispatch to avoid installation issues.

Common Questions

Is this filter suitable for glass media?
Yes. Both sand and glass filtration media are fully compatible.

What is the difference between Pro and Pro Long?
Pro Long has a higher filtration bed, improving dirt retention and extending filtration cycles.

Can it handle high flow residential systems?
Yes. Models are available up to 30,000 l per hour with stable pressure behavior.

Is it compliant with European standards?
Yes. It complies with EN 16713-1 for residential pool filtration.

Available Options

• EUROPE Pro Ø 500 mm, 9,500 l per hour, 1½ inch connections
• EUROPE Pro Ø 600 mm, 15,000 l per hour, 2 inch connections
• EUROPE Pro Ø 750 mm, 22,000 l per hour, 2 inch connections
• EUROPE Pro Ø 900 mm, 30,000 l per hour, 2½ inch connections
• EUROPE Pro Long Ø 500 to 900 mm with extended filtration bed
• Polyester or methacrylate cover variants

Model Reference Codes and Versions

EUROPE Pro Versions

• 64991 – Methacrylate cover, 15,000 l per hour, Ø 600 mm, outlet 2 inch
• 64992 – Methacrylate cover, 22,000 l per hour, Ø 750 mm, outlet 2 inch
• 64993 – Methacrylate cover, 30,000 l per hour, Ø 900 mm, outlet 2½ inch
• 64986 – Polyester cover, 9,500 l per hour, Ø 500 mm, outlet 1½ inch
• 64987 – Polyester cover, 15,000 l per hour, Ø 600 mm, outlet 2 inch
• 64988 – Methacrylate cover, 9,500 l per hour, Ø 500 mm, outlet 1½ inch,
• 64989 – Polyester cover, 30,000 l per hour, Ø 900 mm, outlet 2½ inch
• 64990 – Methacrylate cover, 9,500 l per hour, Ø 500 mm, outlet 1½ inch

EUROPE Pro Long Versions

• 64994 – Polyester cover, 9,500 l per hour, Ø 500 mm, outlet 1½ inch
• 64995 – Polyester cover, 15,000 l per hour, Ø 600 mm, outlet 2 inch
• 64996 – Polyester cover, 22,000 l per hour, Ø 750 mm, outlet 2 inch
• 64997 – Polyester cover, 30,000 l per hour, Ø 900 mm, outlet 2½ inch
• 64998 – Methacrylate cover, 9,500 l per hour, Ø 500 mm, outlet 1½ inch
• 64999 – Methacrylate cover, 15,000 l per hour, Ø 600 mm, outlet 2 inch
• 65000 – Methacrylate cover, 22,000 l per hour, Ø 750 mm, outlet 2 inch
• 65002 – Methacrylate cover, 30,000 l per hour, Ø 900 mm, outlet 2½ inch

Each reference code corresponds to a specific diameter, flow rate, outlet size, and cover material, allowing precise selection based on hydraulic requirements, installation constraints, and maintenance preferences.
