Pool filtration system High performance Aster filter Ø 500.
The filters are produced with polyester resin and glass fiber.
The filters are without lateral selector valve.
It extends the filtration at saturation time of the layers saving energy consumption, consumption of water and chemicals.
The filter can be used as a single layer or multilayer combining sand with gravel, glass or anthracite.
Secure payment methods
Wide choice of couriers
Easy returns and refunds

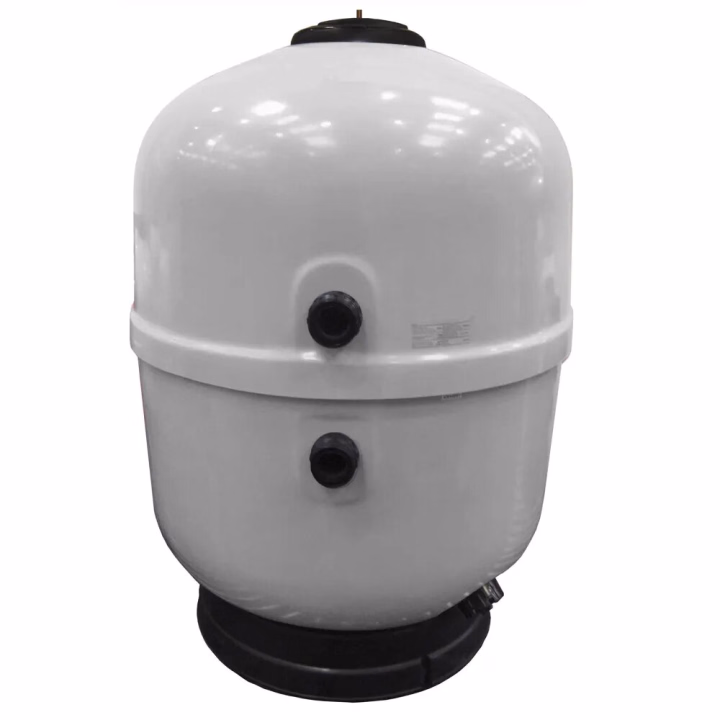

Pool filter - High performance with manifold ASTER
€947.04
The dispatch time for this product is 1 - 3 working days.
Calculate Shipping Cost
| Views: 3413 |
Pool filtration system High performance Aster filter Ø 500.
The filters are produced with polyester resin and glass fiber.
The filters are without lateral selector valve.
It extends the filtration at saturation time of the layers saving energy consumption, consumption of water and chemicals.
The filter can be used as a single layer or multilayer combining sand with gravel, glass or anthracite.
Rating
Pool filtration system High performance Aster filter Ø 500.
The filters are produced with polyester resin and glass fiber.
The filters are without lateral selector valve.
It extends the filtration at saturation time of the layers saving energy consumption, consumption of water and chemicals.
The filter can be used as a single layer or multilayer combining sand with gravel, glass or anthracite.
FEATURES.
• Diameter Ø (M): 0,500.
• Height (M): 1,365.
• Manometer pressure (Bar): 2,5.
• Connections: 1 1/2”.
• Filtration speed m3/h/m2: 50.
• Capacity m3/h at 50 m/h speed: 9.
• Capacity m3/h at 40 m/h speed: 7,8.
• Capacity m3/h at 35 m/h speed: 6,8.
• Swimming pool (m3) (6 hours): 54.
• Sand load (kg): 195.
• Volume (m2): 0,59.
• Weight (kg): 30,00.
• Sku: 24768-100-Filtration.
DESCRIPTION:.
The high quality filter layer is 0,8m, which gives a higher filtration quality than the residential filter, this increases the ability to retain small particles.
Quick opening lid.
2 1/2″ sand drain at bottom of filter.
Optional sand discharge Ø 200mm.
Maximum pressure 2,5Bar.
Optional interior finish with vinylester for ozone treatment.
Maximum temperature of 40º.
24768-100-ASTER
0 Items
Data sheet
- Product Type
- Pool Filters
Specific References
- EAN13
- 0642613958073
- MPN
- 24768-100-ASTER
