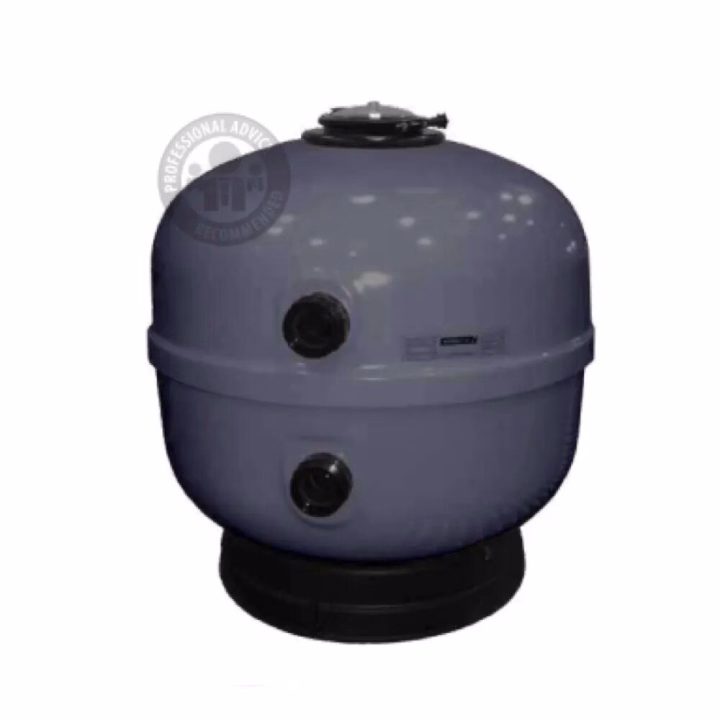

Pool filtration system VELA

Pool filtration system VELA filter Ø 500.

The VELA filter is laminated in glass fiber polyester resin.

Excellent finishes.

Equipped with manual air charge pressure gauge, manual water discharge.

It is capable of handling flows of 10 m2/h with a maximum operating pressure of 2,5 bar.

FEATURES.

• Diameter Ø (M): 0,525.

• Height (M): 0,705.

• Manometer pressure (Bar): 2,5.

• Connections (M): 0,050.

• Maximum flow rate (m3/h): 10.

• Filtration area (m2): 0,19.

• Sand load 0,4-0,8 (kg): 95.

• Volume (m2): 0,50.

• Weight (kg): 15,00.

• Sku: 66274-Filtration.

KEY BENEFITS:.

• Filter colour: RAL 7001.

• Transparent lid with ring closure system with screw.

• Fitted with easy to remove 1" threaded collector arms.

• Connections for 6-position selector valve: filtration, drain, closure, washing, rinsing and recirculation.
