Pool filter - spooled filter BERLIN

Why This Specific Product Stands Out

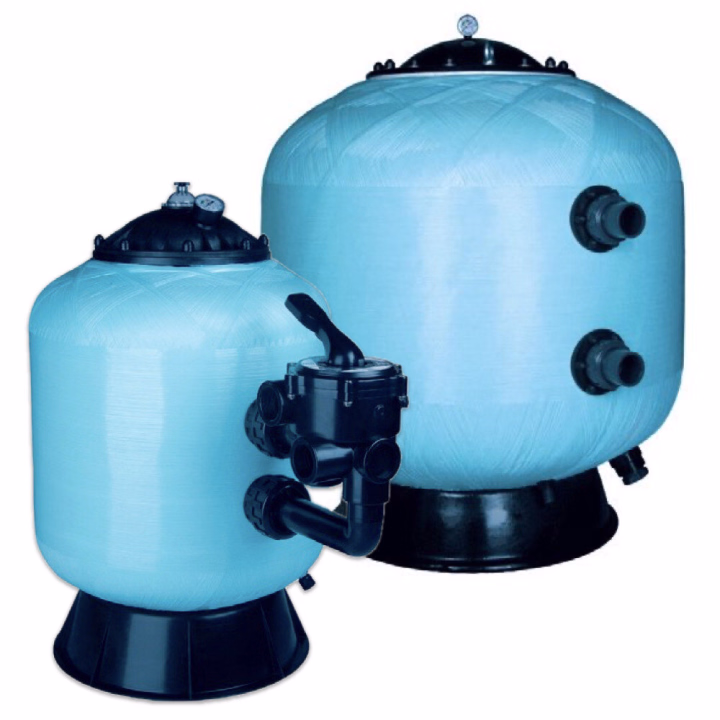

Berlin sand filters rely on a bobbinwound polyester and fibreglass structure. This construction increases resistance to pressure, vibration, and long term fatigue. The blue satin finish adds surface protection while keeping the filter visually clean in technical rooms.

Side mounted multiport valves allow direct control over filtration, backwash, rinse, recirculate, waste, and closed positions. Larger diameters support higher flows while maintaining filtration quality, not brute force circulation.

Technical Excellence and Build Quality

Materials and Construction

• Bobbinwound polyester and fibreglass resin body.
• Inner lining in HDPE for 500 and 600 mm, thermoformed ABS for 750 and 900 mm, polyester and fibreglass for 1050 and 1200 mm.
• Filter base in reinforced plastic up to 750 mm, polyester and fibreglass for larger diameters.
• Collectors and diffuser in high resistance PVC and PP.
• Blue satin finish with protective polyurethane coat on selected diameters.

Performance Specs

• Maximum filtration speed up to 50 m3 per hour per square meter.
• Maximum operating pressure 2.5 kg per cm2, optional 4 kg per Cm³ on request.
• Top manhole diameter 230 mm, expanded to 400 mm on 1050 and 1200 mm models.
• Sand drain outlet 2 inch on 900, 1050, and 1200 mm models.
• Compatible with sand and glass filtration media.

Compliance and Safety

• Complies with EN 16713 1 filtration requirements for private pools.
• Designed according to long term pressure resistance and safety principles proven over decades.
• Manual air and water bleed valves included.
• Integrated pressure gauge for system monitoring.

Getting the Best Results

Install the filter on a stable base, aligned with the pump flow direction. Match the filter diameter to the pool volume and pump output. Use calibrated sand or glass media according to the recommended granulometry.

Perform backwashing when pressure rises above normal operating range. Rinse after each backwash cycle before returning to filtration mode.

• Do: Check pressure regularly.
• Do: Use compatible filtration media only.
• Do: Maintain correct flow rate.
• Do not: Exceed maximum operating pressure.
• Do not: Run without proper air purging.

Reliability You Can Trust at LordsWorld

Berlin sand filters have earned trust over decades, originally under the Servaqua name and now continuing under Berlin branding, backed by engineering heritage.

At LordsWorld, you receive verified products, EU compliant documentation, and technical support before shipment when required. Secure checkout and structured logistics protect your investment from order to installation.

If compatibility or sizing raises questions, use the contact form or email in the footer. For technical configurations, our team may contact you before dispatch to ensure correct selection.

Common Questions

Is this filter suitable for private pools only?
Yes. It is designed for large and demanding private pools requiring stable long term filtration.

Can I use glass media instead of sand?
Yes. The filter supports both sand and glass media.

Does every model include a multiport valve?
No. Smaller diameters include valves, larger models are supplied without valve unless specified.

Is higher pressure resistance available?
Yes. A 4 kg per Cm³ version is available by special order.

Available Options

• Ø 500 mm, 9,000 l per hour, 1 ½ inch with valve.
• Ø 600 mm, 14,000 l per hour, 1 ½ inch with valve.
• Ø 750 mm, 22,000 l per hour, 2 inch with valve.
• Ø 900 mm, 30,000 l per hour, 2 ½ inch without valve.
• Ø 900 mm, 30,000 l per hour, 2 inch outlet without multiport valve.
• Ø 900 mm, 30,000 l per hour, 2 inch outlet, 4 bar version without valve.
• Ø 1,050 mm, 43,000 l per hour without valve.
• Ø 1,200 mm, 56,000 l per hour without valve.
