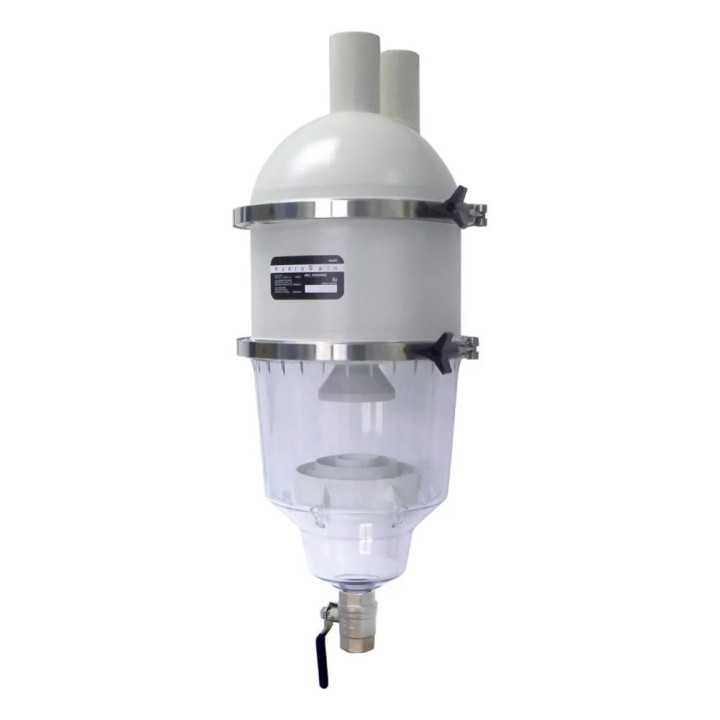

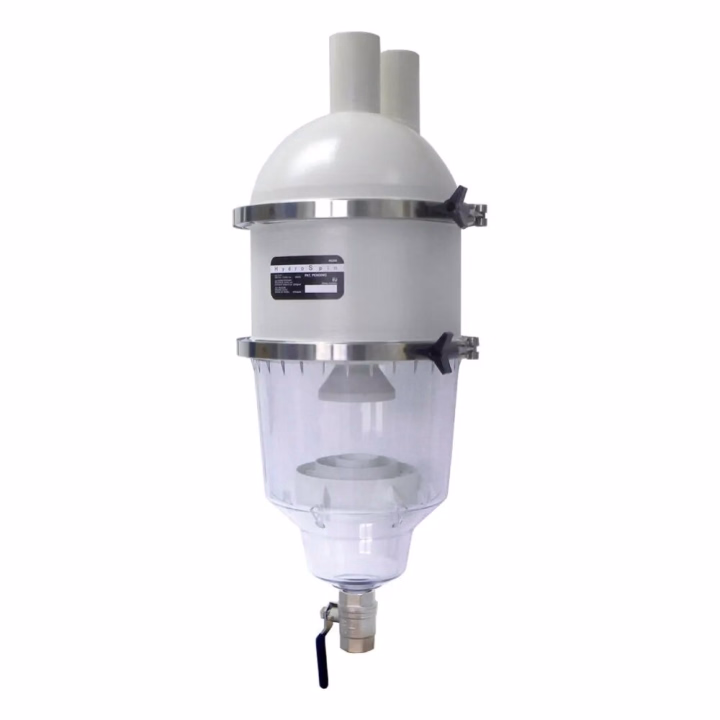

Hydrocyclonic pool filtration system - HYDROSPIN

Swimming pool filtration system HYDROSPIN hydrocyclonic filter.

The Hydrospin hydrocyclonic pre-filter saves you 50% of the water used for filter cleaning.

Pre-filter cleaning device that can be fitted to filtration systems in both new and old installations.

It is mounted between the pump and the filter and separates solids down to 40 microns, thus reducing the amount of water consumed for cleaning the filtration system by half.

It is able to treat flows of 30m2/h with a maximum operating pressure of 2,5 bar.

HydroSpin has a solids collection device with three separate areas (settling, clarification and fogging).

FEATURES.

• Diameter Ø (M): 0,298.

• Height (M): 0,780.

• Max ground support height (M): ,700.

• Manometer pressure (Bar): 2,5.

• Connections (M): 0,063.

• Drain connections: 1”.

• Maximum flow rate (m3/h): 30.

• Process water (L): 5.

• Separation (microns): 40.

• Volume (m2): 0,088.

• Weight (kg): 7,80.

• Sku: 45289-Filtration.

KEY BENEFITS:.

• Can be cleaned using just five liters of water without having to stop the pump.

• Significant reduction in filter cleaning operations.

• Low pressure drops that allow you to install it without having to change the existing pump.

• Can be mounted on the ground with the supplied accessories or on the wall with DN300 flanges.

• Standard connections Ø63 mm for water inflow and outflow and Ø32 mm for dirt evacuation.

Code 47158 is also required to install Hydrospin in the wall.
