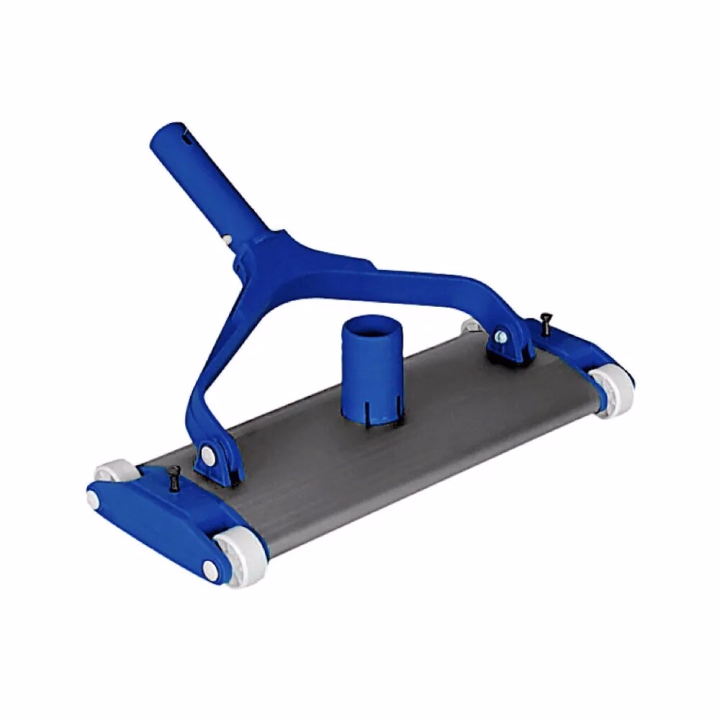

Pool mud vacuum - Anodised extruded aluminium

Detailed Description

This anodized extruded aluminum pool vacuum cleaner is crafted for the rigorous requirements of concrete pool cleaning. Its durable aluminum construction provides excellent resistance to pool chemicals and environmental wear, making it an ideal choice for pool owners. Compatible with both 1½” and 2” terminal sizes, this vacuum cleaner connects seamlessly to pool systems, delivering a smooth and effective cleaning experience.

Detailed Features

• Material: High-quality anodized aluminum and plastic for durability and ease of use.
• Compatibility: Easily attaches to 1½” and 2” terminals for versatile use.
• Application: Specially designed to clean concrete pools effectively.

Comprehensive Description

This pool vacuum cleaner, with its anodized aluminum body, is purpose-built for concrete pools. It’s a durable and efficient solution, ensuring that no debris is left behind. The adaptable design allows easy compatibility with various pool systems, making maintenance hassle-free. Every component is engineered for longevity, providing consistent performance over time.

Usage Tips

1. Assembly: Attach one end of the pipe to the vacuum cleaner and the other to the handle. Immerse the vacuum cleaner and fill the float tube with water to prevent air from entering.
2. Connecting to Pool: Connect the float tube to the pool’s suction inlet. Adjust the flow through the basin and skimmer valves to optimize suction and circulation.
3. After Use: Rinse the filter and clean the pre-filter on the pump after each use to maintain efficiency.
4. Important: Use at recommended flow rates (4-5 feet per second) to avoid the vacuum adhering to the pool floor. Adjust the flow if needed.

Safety Information

Ensure secure connections to prevent air leakage. Adhere to recommended flow rates to avoid product damage, and clean the filter regularly to prolong lifespan.

Do’s and Don’ts

• Do adjust the flow rate using valve controls for optimal cleaning efficiency.
• Don’t exceed recommended speeds to avoid the vacuum adhering to the pool floor.
• Do clean the filter and pre-filter after each use.

Available Variants

• Model 01353: Connection - Screws, Terminal Diameter - 38 mm, Dimensions - Height 0.263 m, Width 0.146 m, Length 0.346 m, Weight - 11.3 kg
• Model 01354: Connection - Screws, Terminal Diameter - 50 mm, Dimensions - Height 0.263 m, Width 0.146 m, Length 0.456 m, Weight - 15.5 kg
• Model 01355: Connection - Clip, Terminal Diameter - 38 mm, Dimensions - Height 0.282 m, Width 0.146 m, Length 0.346 m, Weight - 11.8 kg
• Model 01356: Connection - Clip, Terminal Diameter - 50 mm, Dimensions - Height 0.282 m, Width 0.146 m, Length 0.456 m, Weight - 15.5 kg
• Model 08661: Connection - Screws, Terminal Diameter - 38 mm, Dimensions - Height 0.263 m, Width 0.146 m, Length 0.456 m, Weight - 15.5 kg

Packaging Details

The vacuum cleaner is securely packaged to prevent damage during transport. Individual and bulk packaging options are available based on your needs.

Legal Note

This product complies with all relevant safety standards and regulations, ensuring safe use in concrete pools.
