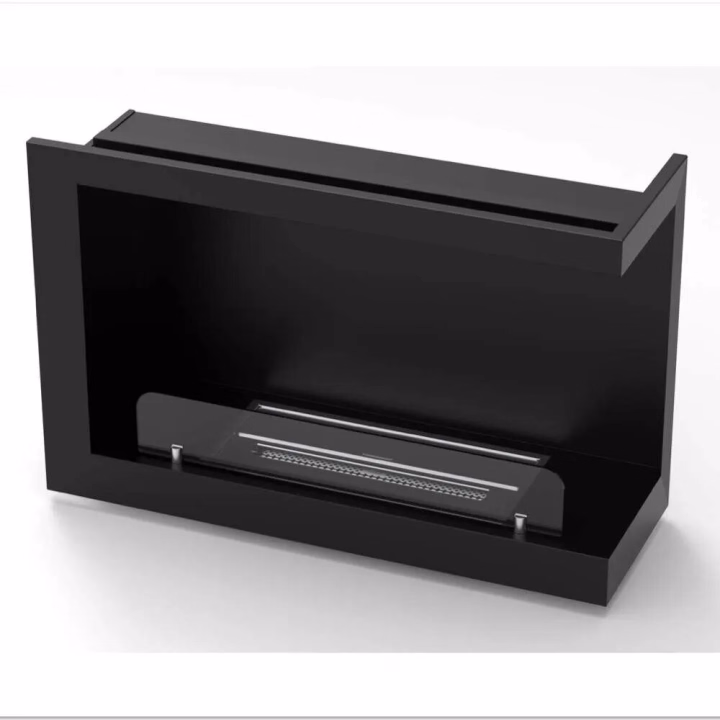

4.11 kW/h right sided bioethanol insert fireplace 00093

Key Benefits

• Heats rooms up to 26 m²
• No chimney or electrical supply required
• Right side open design for architectural installations
• Tempered safety glass protects against direct flame contact
• Certified burner compliant with UNI EN16647

Technical Features

• Thermal power: 4.11 kW
• Burner capacity: 3.5 liters
• Burning duration: up to 5 hours 30 minutes
• Fuel type: bioethanol
• Material: steel and tempered glass
• Weight: 10 kg

Main Functions

The insert generates real flame heat through a certified bioethanol burner with double bottom and rock wool absorption. Heat spreads directly into the room while the glass panel stabilizes and protects the flame.

How to Use It

Install the insert inside a prepared wall or plasterboard niche. Apply a suitable insulating layer between the insert and the surrounding structure. Fill the burner with approved bioethanol fuel. Ignite following standard bioethanol fireplace procedures.

Why Choose This Product?

You gain a clean heating solution without flue constraints. You control placement and design. After installation, you enjoy immediate flame, stable heat output, and reduced structural limits compared to traditional fireplaces.

Safety, Storage & Installation Notes

• Insulation material is mandatory and not included
• Installation must be handled by a qualified installer
• Use only certified bioethanol fuel
• Keep away from children during operation

Do’s and Don’ts

Do

• Install thermal insulation behind the insert
• Allow full cooling before refilling
• Use in ventilated environments

Don’t

• Install without insulation
• Refill while burner is hot
• Modify the burner structure

Available Variants

• 00093 Right side opening
• 00092 Left side opening

Legal Note

The burner complies with UNI EN16647 standards. Product conforms to applicable EU safety requirements. Always verify local installation regulations.

Key Characteristics

• Right side open bioethanol insert
• 4.11 kW thermal output
• 3.5 liter certified burner
• Wall or plasterboard installation
• Tempered glass flame protection

If you have any doubt regarding installation or compatibility, contact us before purchase. For technical products, we may contact you prior to shipping to confirm correct application.
