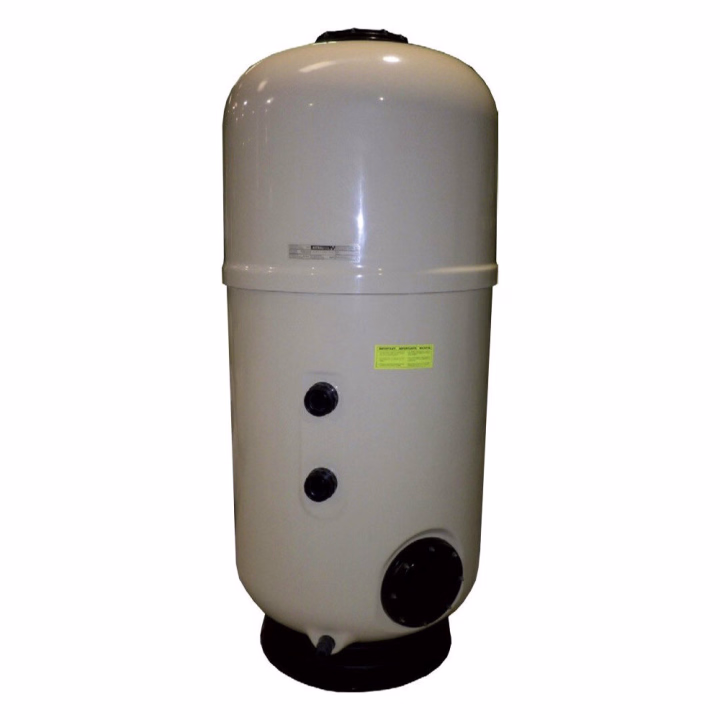

Pool filters - High efficiency with collectors ARTIC

Pool filtration system ARTIC filter with Ø 500 collector.

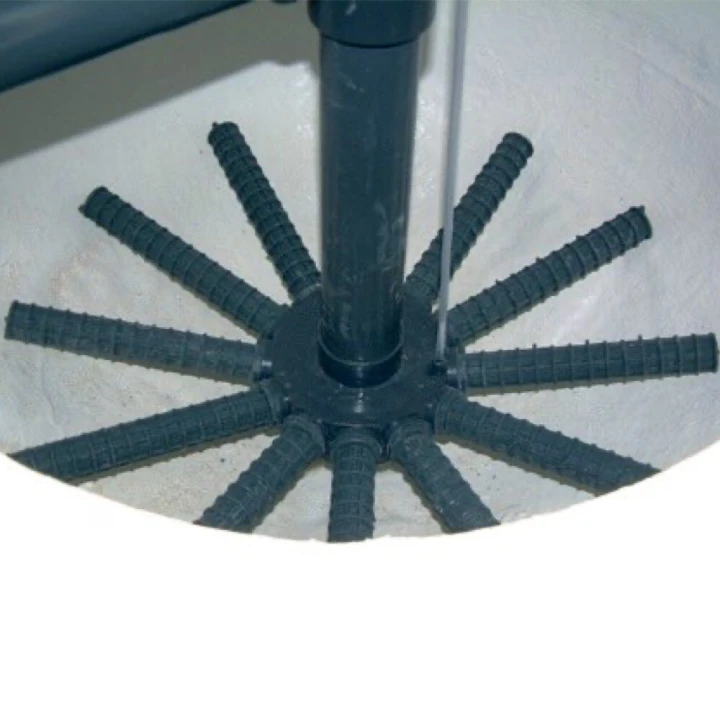

Articulated filter, 1 1/2" connections, collector arms.

High efficiency sand filter.

Made of polyester resin and glass fiber with external gel-coat finish.

The filter consists of only two parts.

Manual air discharge.

Internal components in PVC.

FEATURES.

• Diameter Ø (M): 0,500.

• Height (M): 1,650.

• Filter bed height (M): 1,000.

• Manometer pressure (Bar): 2,5.

• Connections (M): 1 1/2”.

• Capacity m3/h at 50 m/h speed: 9.

• Capacity m3/h at 40 m/h speed: 7,5.

• Capacity m3/h at 35 m/h speed: 6.

• Filtration surface (m2): 0,19.

• Volume (m2): 1,15.

• Weight (kg): 70,00.

• Sku: 034029-0100-Filtration.

DESCRIPTION:.

Filter bed height 1 m, maximum pressure 2,5 kg/cm2.

Maximum working temperature 50°C.

Union between lower and upper body with silicone filling to obtain an optimal seal.

Optional spy visor.

Standard diffuser/manifold support device in diameters 950, 1050 and 1200 mm.

Manual water drain 1" in diameters 500, 650, 800, 950 and 2" 1/2 in diameters 1050 and 1200.

Upper cover in plastic material Ø 200 in the 500, 650, 800 and 950 models and Ø 400 in the 1050 and 1200 models.

Sand discharge Ø 200 in the lower part of the filter.

Compatible with sand and glass.

Very important: please advise if the installation will use sea water, if the backwashing will be done with air or air/water and if the installation is external.

OPTIONS:.

- Internal coating in ozone resistant vinylester, up to 0,4 ppm for a temperature of 40ºC.

- Nozzle plate system, except for the 500 mm diameter model: glass fiber reinforced polyester nozzle plate, with PP nozzles with 0,5 mm slots, uniformly distributed with a density of 60 units/m2.

- Eastar copolyester sight glass.

- D400 mm manhole cover in the 1050 and 1200 mm diameter models.
