Pool filter 6-way selector valves

Why This Specific Product Stands Out

AstralPool multiport valves are designed around the operator. The handle geometry, internal distributor, and sealing system work together to reduce effort and avoid incorrect positioning. The range covers residential pools, commercial installations, compact filter rooms, and large public systems through four distinct families, New Generation, Classic, Flat, and Magnum. Each series answers a specific installation need without compromising reliability.

• Six clearly defined functions, filtration, backwash, rinse, recirculation, emptying, and closed.
• Up to five connection alternatives to match real world pipe layouts.
• Low internal friction to reduce wear and pressure loss.
• Materials selected for chemical resistance and long service life.

Technical Excellence and Build Quality

Materials and Construction

• Valve body, cover, and handle in injection molded ABS.
• Internal distributor plate in PPO for dimensional stability.
• Star gasket in EPDM to prevent dirt accumulation and ensure sealing.
• Sight glass in polycarbonate for visual inspection.
• Stainless steel springs and metal components for corrosion resistance.

Performance Specs

• Six position manual selector.
• Maximum working pressure up to 3.5 bar depending on series.
• Connection sizes from 1 1/2 inch to 4 inch.
• Designed for controlled head loss during filtration and backwash cycles.
• Available with threaded or slip connections, BSP or NPT.

Compliance and Safety

• Designed for swimming pool filtration circuits.
• Materials compatible with standard pool disinfectants.
• Operational safety based on manual pump off switching during position change.

Getting the Best Results

Correct use preserves both the valve and the filtration system. Always stop the pump before moving the selector handle. This avoids hydraulic shock and internal damage.

• Do stop the pump before every position change.
• Do use PTFE tape or flat gaskets on threaded connections.
• Do rinse after every backwash cycle before returning to filtration.
• Do not run the pump in closed position.
• Do not use liquid Teflon on threaded joints.

Reliability You Can Trust at LordsWorld

Every AstralPool multiport valve supplied by LordsWorld is original and sourced through official distribution channels. You receive technical support before and after purchase, secure checkout, and fast European shipping. If your installation layout or filter model raises compatibility questions, contact us before ordering. For complex systems, our team may verify configuration details before dispatch to ensure correct fit.

Common Questions

Is this valve suitable for my existing filter?
Yes, the range covers top and side mount configurations with multiple connection variants. Matching diameter and connection type is essential.

What happens if the valve is turned with the pump running?
This risks damaging the internal gasket and distributor. Always stop the pump first.

Which series should I choose?
New Generation suits most residential pools, Flat suits tight spaces, Classic fits standard upgrades, and Magnum is intended for high flow commercial systems.

Can it handle high pressure installations?
Magnum models are specifically designed for higher flows and larger filters.

Available Options

• New Generation series, 1 1/2 inch and 2 inch, Top and Side mount.
• New Generation Top Eco, 1 1/2 inch, compact height.
• Classic series, 1 1/2 inch and 2 inch.
• Flat series, 1 1/2 inch, single level compact design.
• Magnum series, 2 1/2 inch, 3 inch, and 4 inch.

Available Variants and Reference Codes

New Generation Series

• 1 1/2 inch Top Eco
  Top mount, compact height, maximum working pressure 1.5 bar, without couplings, reference code 32583

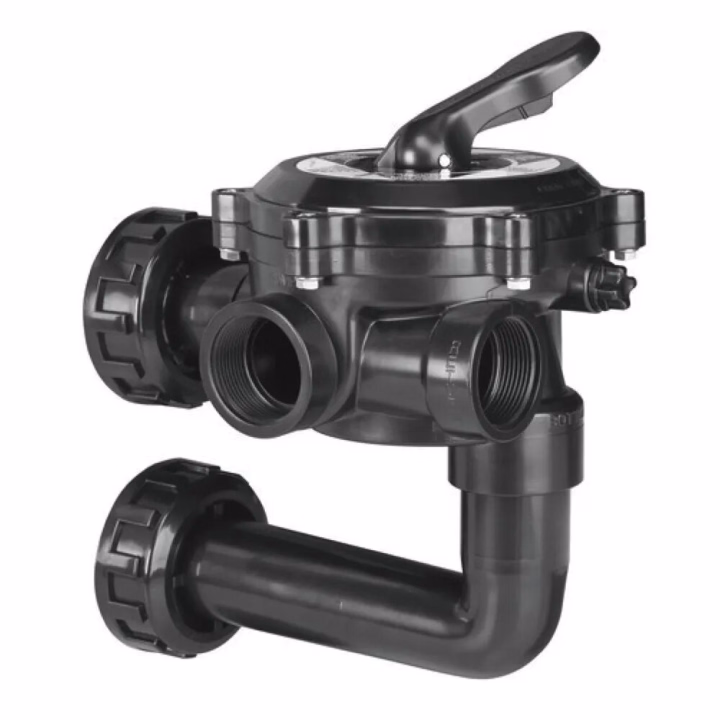

• 1 1/2 inch Variant 3 with filter connection
  Side mount, BSP threaded connections, reference code 20569
• 1 1/2 inch Variant 3 without filter connection
  Side mount, BSP threaded connections, reference code 20043
• 2 inch Variant 3 with filter connection
  Side mount, BSP threaded connections, reference code 28512
• 2 inch Variant 3 without filter connection
  Side mount, BSP threaded connections, reference code 28511

Classic Series

• 2 inch Variant 3 with filter connection
  Side mount, BSP threaded connections, reference code 21263

Classic Plus Series

• 1 1/2 inch Variant 3 with filter connection
  Slip outlets, supplied with connection kit, reference code 73950
• 2 inch Variant 3 with filter connection
  Slip outlets, supplied with connection kit, reference code 74862
• 1 1/2 inch Variant 3 without filter connection
  Threaded outlets, reference code 76148
• 2 inch Variant 3 without filter connection
  Threaded outlets, reference code 76149
• 1 1/2 inch Variant 3 without filter connection
  Slip outlets, reference code 75285

Flat Series

• 1 1/2 inch Variant 3 with filter connection
  Compact single level body, slip outlets, reference code 34543
• 1 1/2 inch Variant 3 without filter connection
  Threaded outlets, reference code 34544
• 1 1/2 inch Variant 3 without filter connection
  Slip outlets, reference code 34545
• 1 1/2 inch Top mount
  Compact design, threaded or slip outlets depending on configuration, reference code 34546

Magnum Series

• 2 1/2 inch Variant 3 with filter connection
  Side mount, high flow application, reference code 24837
• 2 1/2 inch Variant 3 without filter connection
  Side mount, high flow application, reference code 24838
• 3 inch Variant 5
  Side mount, all ports open, supplied with threaded plugs, reference code 28515
• 4 inch Variant 5
  Side mount, all ports open, supplied with threaded plugs, reference code 33933

All variants are six way manual selector valves for pool filtration circuits. Variant number defines hydraulic layout. Top mount and side mount versions are not interchangeable. Thread standard is BSP or NPT depending on reference. Certain references may require quotation depending on availability.
