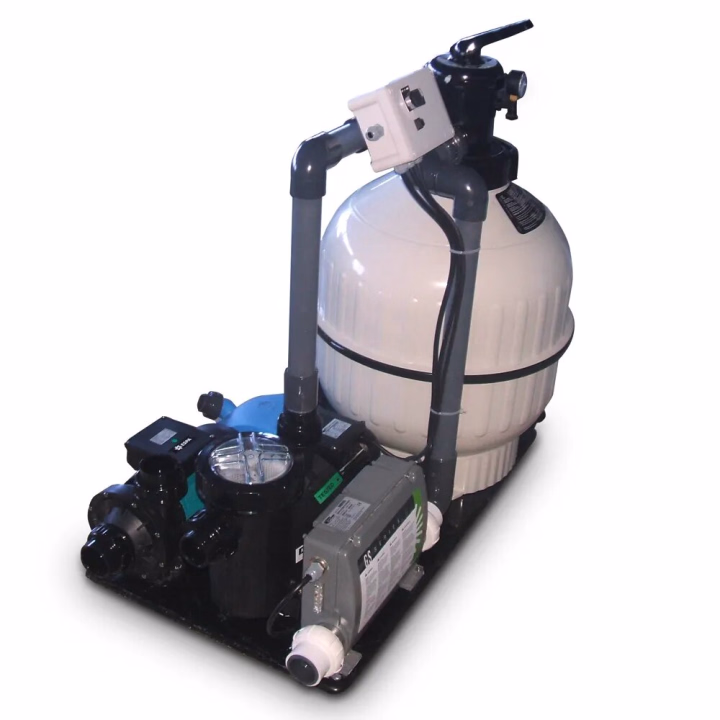

Compact Spa Filtration Kit

Why This Specific Product Stands Out

• Fully pre assembled configuration for filtration, heating, and massage.
• Electrical control panels prepared for piezoelectric push button activation.
• Single compact footprint reduces technical room space requirements.
• Multiple configurations aligned to specific spa models, volumes, and hydraulic demands.
• Optional ozone disinfection and water to water heat exchanger integration.

Instead of building systems piece by piece, you deploy a tested architecture engineered for continuous public duty cycles. Every option exists to match real hydraulic and thermal needs, not marketing labels.

Technical Excellence and Build Quality

Materials and Construction

• Industrial grade filtration tanks with diameters from 500 mm to 650 mm.
• High duty circulation and massage pumps sized for public spa loads.
• Integrated air blowers supplied without intake air filters as standard for public installations.
• Compact steel frame layout engineered for service access.

Performance Specs

• Filtration flow rates from 10,000 to 11,000 liters per hour.
• Filtration pump power from 0.60 kW to 0.82 kW.
• Massage pump configurations from 1.40 kW up to combined multi pump systems exceeding 6 kW.
• Air blower power at 1.3 kW.
• Electric heater options at 3 kW or 6 kW depending on variant.
• Optional water to water heat exchanger rated at 20 kW.
• Three phase power supply 400 V AC III + N or dual voltage 230 V to 400 V III on selected kits.

Compliance and Safety

These kits are engineered for public and professional spa environments, where electrical stability, hydraulic reliability, and consistent thermal output are mandatory. Component sizing and control logic reflect continuous duty operation and regulatory expectations for public wellness facilities.

Getting the Best Results

Install the kit on a level technical base with sufficient clearance for maintenance. Verify electrical supply matches the selected variant before connection. Connect filtration, massage, and air circuits according to spa model specifications. Configure heating and optional ozone systems only after full hydraulic priming.

• Do: Match the kit code exactly to the spa model listed.
• Do: Confirm power availability in amps and voltage before installation.
• Do: Schedule periodic inspection of pumps and heaters in public use.
• Do not: Add aftermarket components without hydraulic recalculation.
• Do not: Operate air blowers with restricted intake airflow.

Reliability You Can Trust at LordsWorld

LordsWorld supplies original, specification correct compact kits aligned to manufacturer documentation. Technical support evaluates compatibility before dispatch when required. Shipping follows professional handling standards suited for heavy and volumetric equipment. Secure checkout and traceable logistics support public and commercial buyers.

If you have any doubt about spa model compatibility or electrical constraints, contact us before ordering. For professional systems, our team may verify configuration details prior to shipment to prevent installation issues.

Common Questions

Is ozone mandatory?
No. Ozone disinfection is optional and selected per variant. Standard filtration and heating remain fully functional without it.

Are these kits suitable for continuous public use?
Yes. Pump sizing, filtration rates, and electrical configurations are selected specifically for public spa duty cycles.

Can I retrofit an existing spa?
Only if the spa model and hydraulic layout match the listed compatibility. Verification before purchase is essential.

Is the heat exchanger always included?
No. The 20 kW water to water heat exchanger is optional and depends on the selected configuration.

Available Options

• Compact Kit 50 with or without ozone.
• Compact Kit 50 with 20 kW water to water heat exchanger.
• Compact Kit 75 in 2 pump or 3 pump configurations.
• Compact Kit 75 with ozone option.
• Compact Kit 75 with 20 kW water to water heat exchanger.
• Digital Compact Kit for Thalassa E and Ronda installations.
• Variants matched to Odisea 20, Venus, Vulcano, Mercury, Roma, Olympia, Verona, Mirage 40, Tokyo 70, Mediterranea, Compact, and Creta swimspa models.
