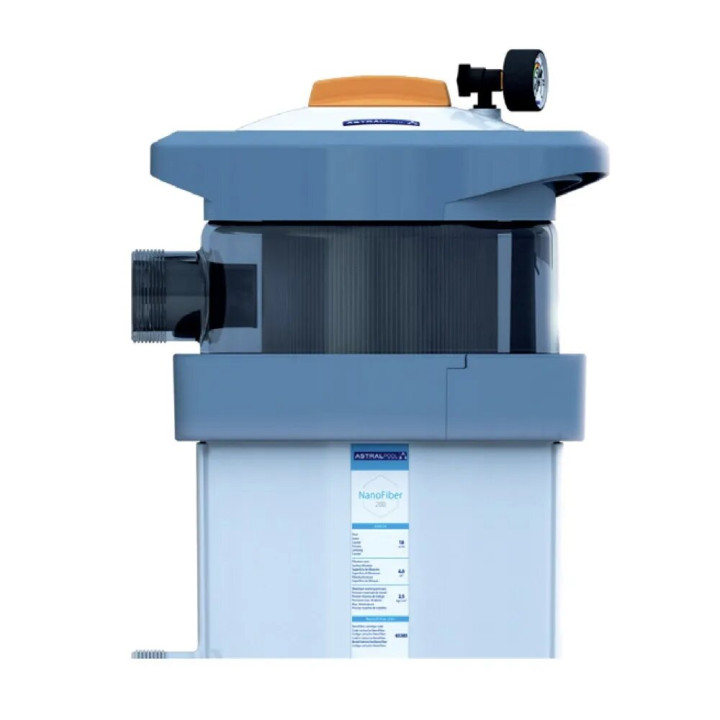

Astralpool Nanofiber Pool Filter Automatic And Manual

Key Benefits

• Filtration fineness down to 5–8 μm – comparable to diatomaceous filters
• Self-cleaning mechanism with rotating cartridge (manual or automatic)
• Compact dimensions – fits where larger filters can't
• Lower water consumption during backwash
• Slower limescale buildup, longer cartridge life
• Quick and easy maintenance access
• Compatible with existing AstralPool multiport valves

Main Functions

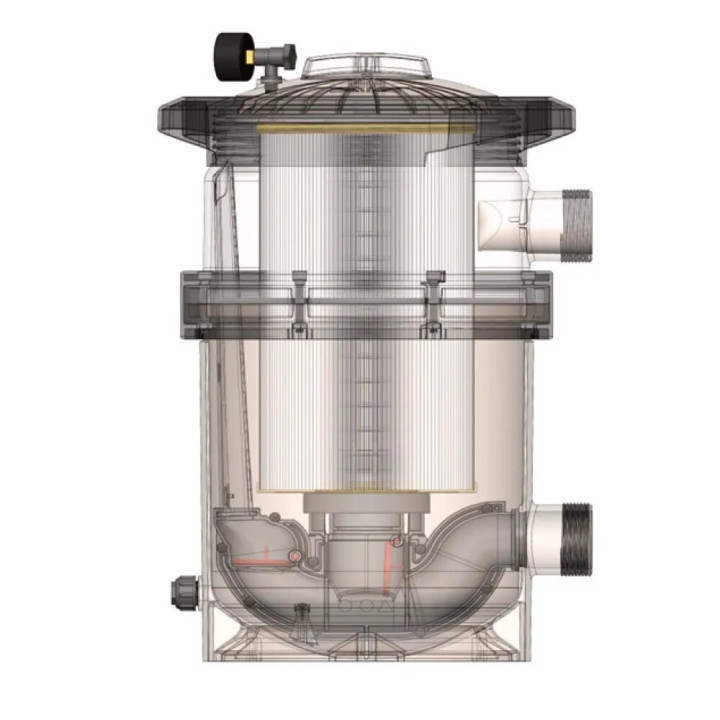

The NanoFiber filter continuously traps micro-particles during filtration. When backwashing is needed (detected by a 0.5 bar pressure increase), the lever is turned (manually or automatically), spinning the cartridge and flushing debris through a tangential water flow design. The water quality after rinse returns to optimal levels without performance loss.

Technical Features

Materials & Design

• Injection-moulded plastic housing
• Tinted transparent cover for visual inspection
• Pressure gauge, air release valve included
• Max pressure: 2.5 bar
• Max water temperature: 40 °C
• Connections: 2”

Filtration Area & Flow Rates

• Model 150: 4.5 m², 10 m³/h, up to 70 m³ pool volume
• Model 180: 5.2 m², 14 m³/h, up to 80 m³ pool volume
• Model 200: 6.0 m², 18 m³/h, up to 90 m³ pool volume

How to Use It

• Install near pool at or below waterline, on a flat surface
• Connect to 2” AstralPool valve (code 07444) – sold separately
• During filtration, monitor pressure gauge
• Backwash when pressure rises 0.5 bar above baseline
• Replace cartridge approximately every 3 years

Why Choose This Product?

• Patent-pending nanofiber cartridge: higher efficiency
• Does not impregnate with dirt – full flow restored after cleaning
• No limescale buildup – water flows evenly
• Low maintenance and minimal footprint
• Long service life of cartridge and parts

Safety, Storage & Eco Info

• Do not use without water or with iron pipes
• Use plastic fittings and Teflon tape only
• Never exceed 2.5 bar pressure
• Store cartridge dry, away from frost
• No solvent cleaning allowed on transparent lid

FAQs

• Can I install this on an existing pool? Yes, it is compatible with most systems using a standard 2” valve.
• How often should I replace the cartridge? Every 3 years under normal use.
• Is backwashing automatic? Only on the AUTO models (67355-0100, 67356-0100, 67357-0100).
• Is a multiport valve included? No, it must be purchased separately (code 07444).

Why Shop with LordsWorld

• Expert technical support in multiple languages
• Fast shipping throughout the EU
• Secure checkout and verified supplier
• Official AstralPool dealer

Support & Compatibility

For any doubts about compatibility with your pool system, please contact us before purchasing. In technical cases, we will verify details before dispatch.

Available Variants

• NanoFiber 150 Manual – 64837-0100
• NanoFiber 180 Manual – 64838-0100
• NanoFiber 200 Manual – 64839-0100
• NanoFiber 150 Automatic – 67355-0100
• NanoFiber 180 Automatic – 67356-0100
• NanoFiber 200 Automatic – 67357-0100

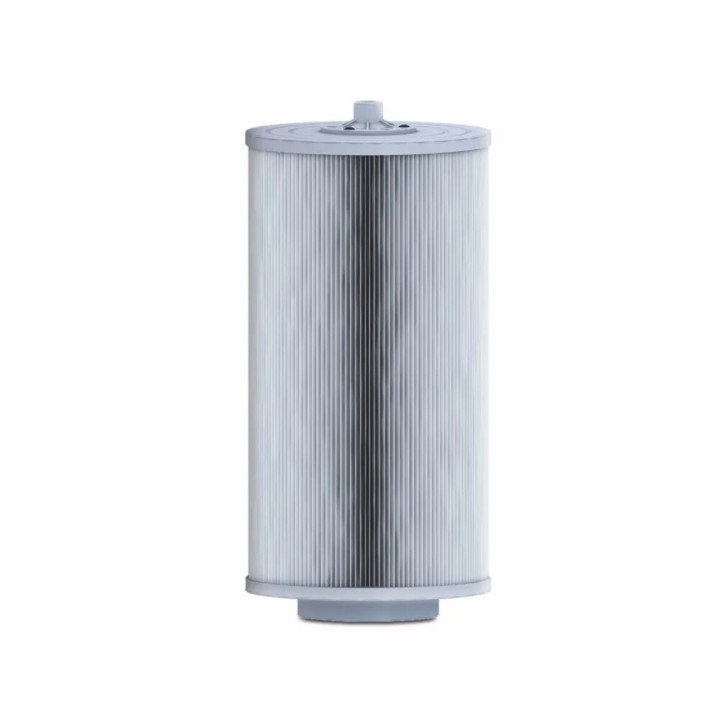

• Replacement Cartridges: 65383 (150), 65384 (180), 65385 (200)
• Automation Kit for manual models

Legal Note

• CE compliant and certified to operate under 2.5 bar max pressure
• Filter designed and manufactured in Spain

Key Characteristics

• Filter Medium: Nanofiber Cartridge
• Filtration Fineness: 5–8 μm
• Max Pressure: 2.5 bar
• Flow Rate: 10, 14, or 18 m³/h
• Connection: 2-inch
• Pool Volume: up to 90 m³
