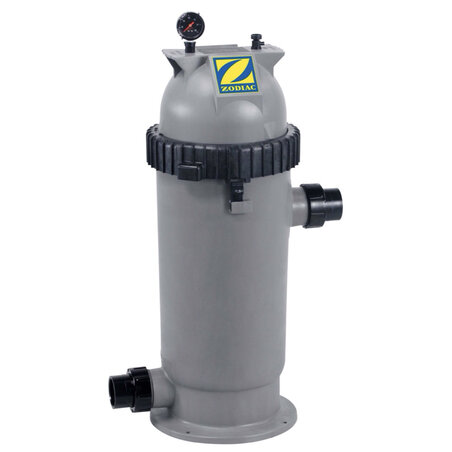

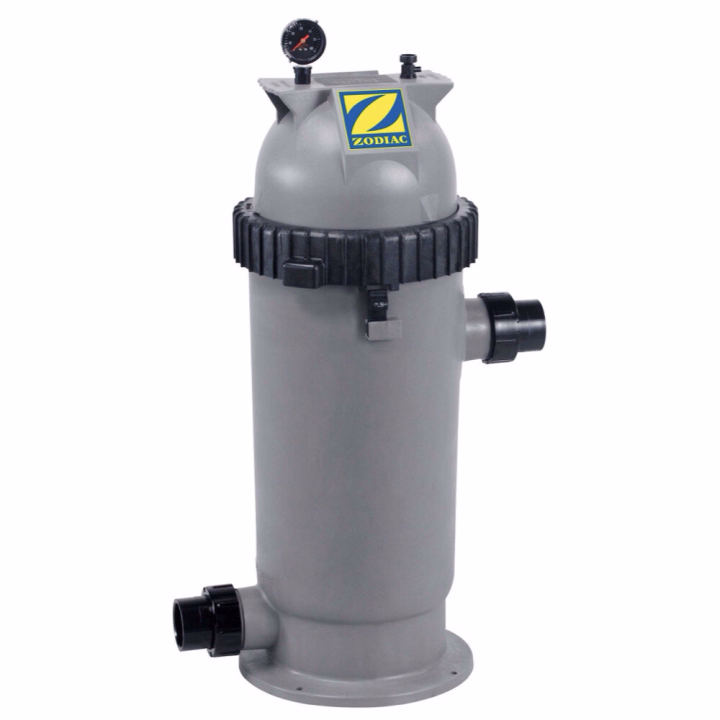

Zodiac Cs Cartridge Filter For Swimming Pools

Why This Specific Product Stands Out

All Zodiac CS cartridge filters share the same hydraulic design. There is no model specific limitation on pipe diameter. Each unit is built with a standard 63 mm filter body port and is supplied with reduction unions to adapt to 50 mm plumbing. This avoids sizing mistakes during purchase and allows direct integration into both modern and existing installations.

This approach keeps hydraulic performance stable while giving full flexibility during installation. You connect directly to 63 mm lines for maximum flow efficiency or reduce to 50 mm without additional accessories or adapters.

Technical Excellence and Build Quality

Materials and Construction

• Filter body manufactured in fiber glass reinforced polypropylene.
• Single piece pressure vessel shared across all CS models.
• Top mounted pressure gauge with clean dirty reference ring.
• Integrated air release valve for controlled system priming.

Hydraulic Connections

• Standard 63 mm ports on the filter body for all models.
• Supplied 63 to 50 mm union tailpieces included in the box.
• Direct compatibility with 63 mm and 50 mm plumbing.
• No additional reducers or fittings required.

Performance Specs

• Filtration fineness 15 to 20 microns.
• Maximum operating pressure 3.5 bar.
• Working pressure 0.2 to 0.8 bar with variable speed pumps.
• Working pressure 0.4 to 1.2 bar with single speed pumps.

Available Options

• CS 100. Filter surface 9.3 m2. Pool volume up to 130 m3.
• CS 150. Filter surface 14.0 m2. Pool volume up to 170 m3.
• CS 200. Filter surface 18.6 m2. Pool volume up to 170 m3.
• CS 250. Filter surface 23.2 m2. Pool volume up to 170 m3.

All models use the same 63 mm filter body ports and are supplied with 63 to 50 mm connection unions.
