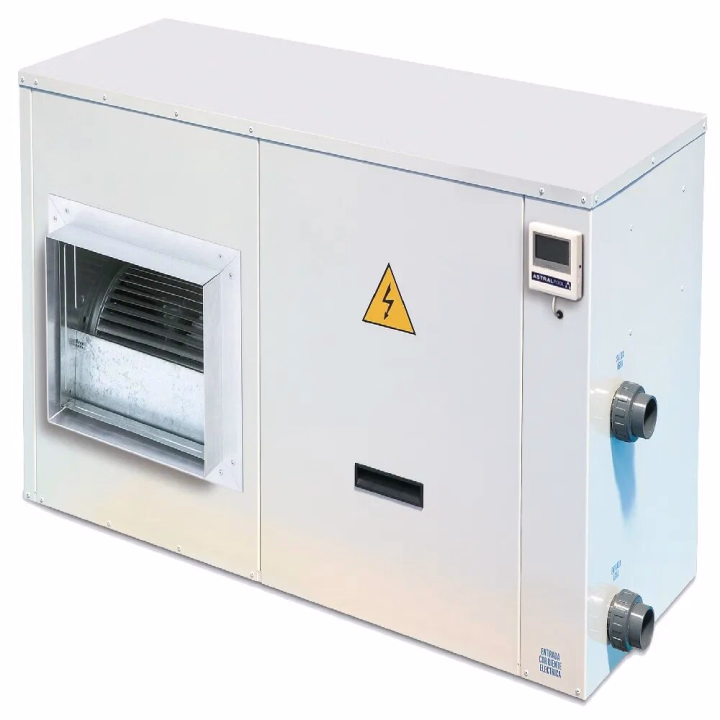

Water chillers - Indoor pools SIBERIA

Key Benefits

• Designed for indoor installation with centrifugal fan for ducted ventilation
• G2 Titanium heat exchanger guarantees corrosion resistance
• Low-noise operation, ideal for sensitive environments
• High performance with outlet cooling power up to 22.71 kW
• Full electronic control panel with alarms and auto-protection
• Compatible with saltwater and chemically treated pools

Main Functions

Each SIBERIA unit is engineered to provide reliable cooling between 6°C and 12°C water temperatures, under ambient air conditions up to 40°C. The integrated regulator manages all protections—flow control, overpressure, overheating, antifreeze—as well as scheduled cycles and auto-defrost in heating mode (if reversible).

Technical Features

• Compressor: Scroll, with carter heater
• Evaporator: PVC and G2 Titanium tube
• Refrigerant: R-407C, charge 2–6.6 kg depending on model
• Fans: Centrifugal, direct drive for ducted exhaust
• Fan Flow: 3,800 to 22,000 m³/h
• Water flow: 6 to 15 m³/h (varies by model)
• Water connection: 50 mm (63 mm for SIBERIA-15 and 17)
• Max water pressure: 3.5 bar
• Max ambient air temp: 40°C

How to Use It

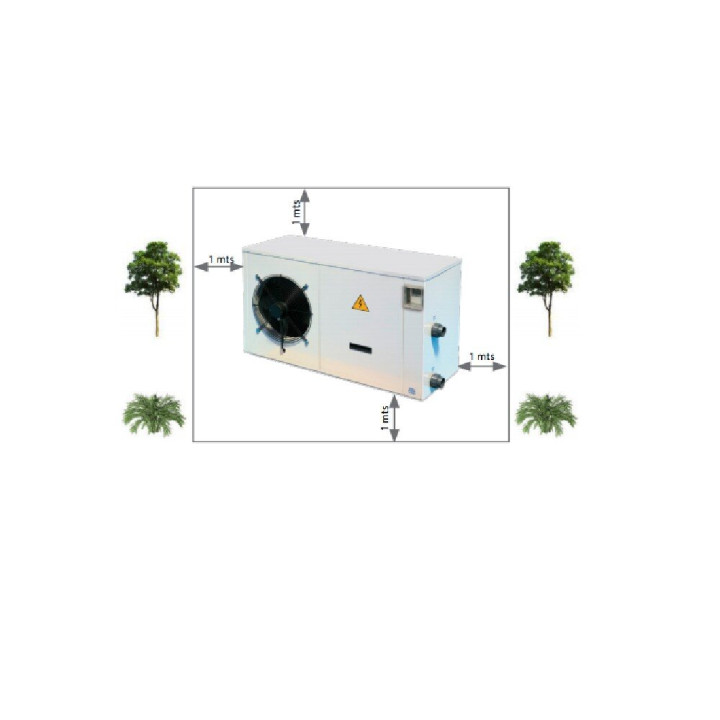

SIBERIA chillers must be installed in a well-ventilated technical room with ducts for air intake and exhaust. Connect it after filtration and before any chemical dosing system. Set the desired water temperature using the control panel, ensuring continuous water flow and proper airflow through ducting. Install a siphon and non-return valve when needed.

Why Choose This Product?

With its compact design, indoor compatibility, and high thermal performance, the SIBERIA chiller is an ideal solution for locations where outdoor installation isn't viable. It's perfect for cold-water therapy pools, balneotherapy facilities, spas, or hotel installations needing precise temperature control in restricted indoor spaces.

Safety, Storage & Eco Info

• Never operate without active water circulation
• Ensure ventilation ducts respect load loss limits (max 120 Pa)
• Compliant with RoHS, WEEE, REACH, CE directives
• Uses ozone-safe R-407C refrigerant
• Equipped with high and low pressure switches and overheating protection

FAQs

• Can SIBERIA be installed outside?
  No. SIBERIA models are built exclusively for indoor technical rooms with appropriate ducting.
• Is it suitable for saltwater pools?
  Yes. All SIBERIA chillers use corrosion-resistant titanium heat exchangers.
• Does it support defrost mode?
  Yes. The integrated controller handles defrost and compressor cycle protection autonomously.

Why Shop with LordsWorld

When buying from LordsWorld, you benefit from direct product expertise, secure EU-wide shipping, and verified warranty support. We ensure every product is genuine and shipped with full documentation.

Support & Assistance

Need help choosing the right model or ensuring compatibility? Use the contact form on the product page, email us from the footer, or visit our contact page. If compatibility is unclear, we will contact you before dispatch.

Available Variants

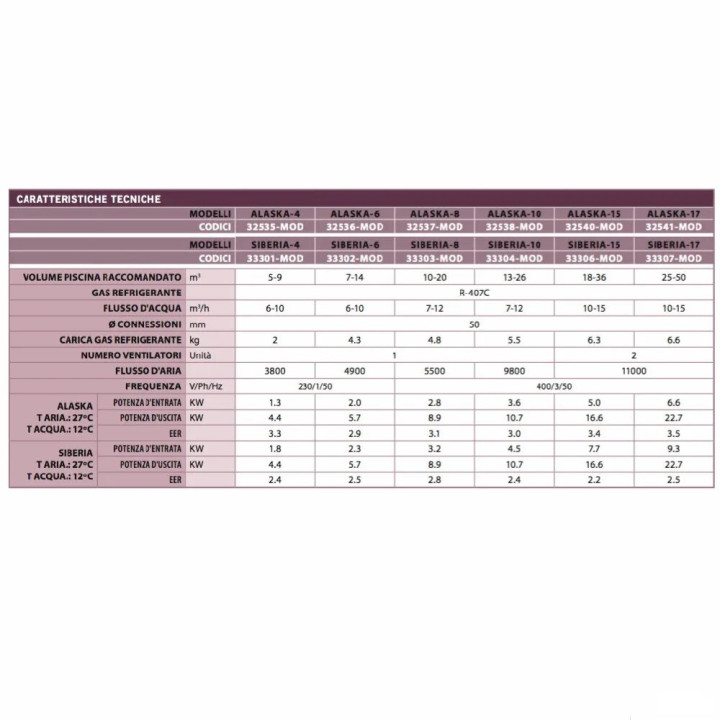

• SIBERIA-4 – 4.43 kW cooling – Code: 33301
• SIBERIA-6 – 5.72 kW cooling – Code: 33302
• SIBERIA-8 – 8.88 kW cooling – Code: 33303
• SIBERIA-10 – 10.73 kW cooling – Code: 33304
• SIBERIA-15 – 16.60 kW cooling – Code: 33306
• SIBERIA-17 – 22.71 kW cooling – Code: 33307

Legal Note

Meets EU Machine Directive 2006/42/EC, EMC Directive 2014/30/EC, Low Voltage Directive 2014/35/EC, RoHS 2011/65/EC, WEEE 2012/19/EC, and REACH Regulation 1907/2006. CE marked and safe for use in all EU countries.

Key Characteristics

• Indoor installation with centrifugal fans and ducting
• Titanium heat exchanger with PVC structure
• Integrated safety and antifreeze protection
• Digital display with regulation and diagnostics
• Compatible with salt-chlorinated pools
• Max inlet air: 40°C | Max water pressure: 3.5 bar
