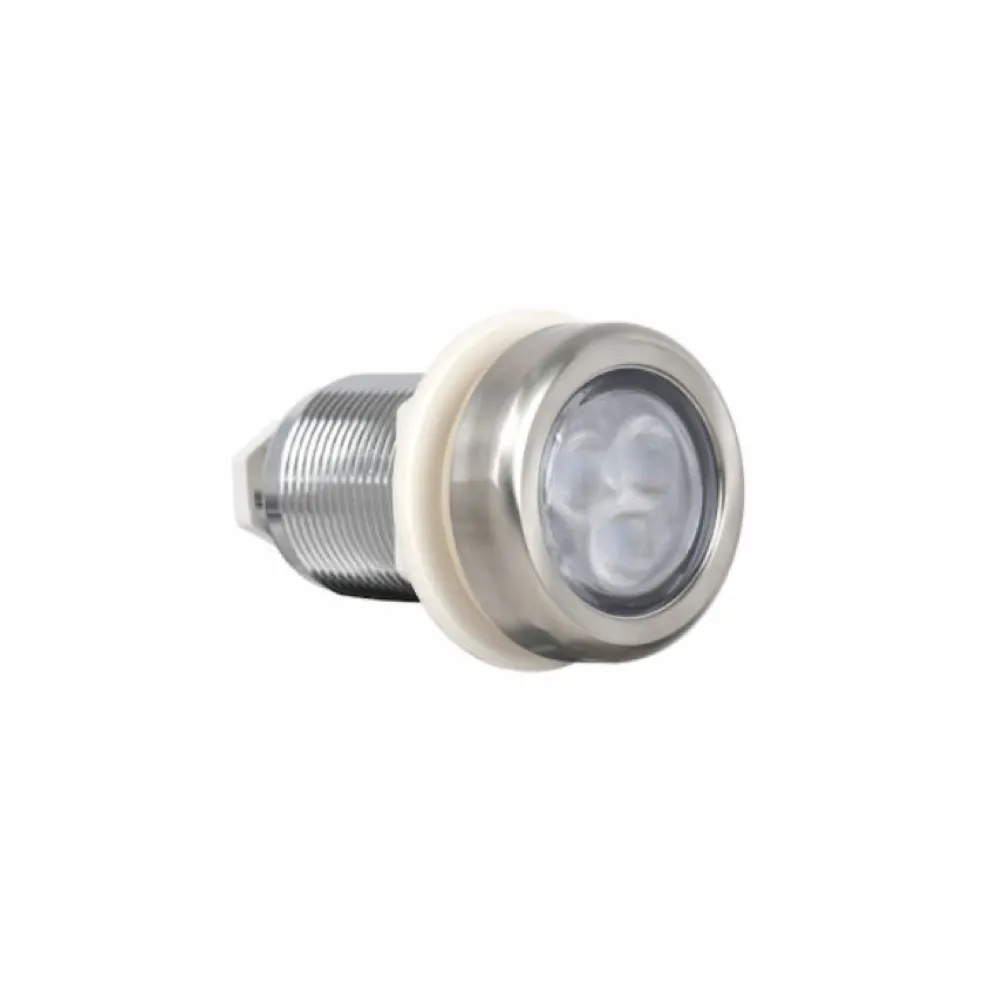

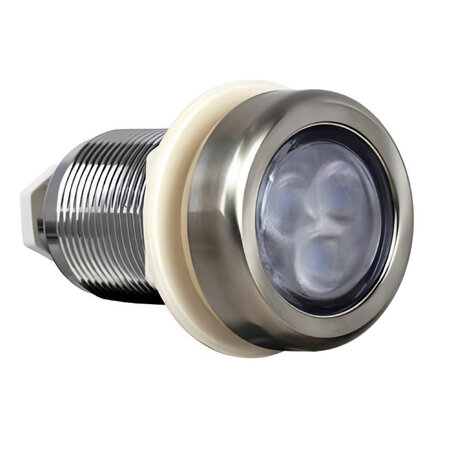

Spa micro lamp - LUMIPLUS MICRO

Experience the Difference From Stress to Clarity

After a few months of use, the difference becomes obvious. Your spa lighting works every time, with no flicker, no water ingress, and no glare. The light distribution feels balanced, enhancing relaxation rather than distracting from it. Maintenance concerns fade away because the sealed LED unit requires no intervention and tolerates real world spa conditions, including warm water and chemical treatment. Whether you choose white, warm white, or RGB multicolor, the environment feels intentional and refined. Lighting becomes part of the spa experience, not a weak point you worry about.

Why This Specific Product Stands Out

LumiPlus Micro stands apart because it solves multiple spa lighting problems at once. Its ultra compact size allows installation where standard projectors simply do not fit. The polyamide body combined with ABS or AISI 316 stainless steel faceplates ensures resistance against corrosion, heat, and chemical stress. RGB versions integrate seamlessly with existing AstralPool and Fluidra control ecosystems, avoiding fragmented systems or proprietary lock in. Every design choice focuses on controlled performance in small water volumes, not oversized output designed for full scale pools.

Technical Excellence and Build Quality

Materials and Construction

The projector body is manufactured from high resistance polyamide, engineered for continuous underwater use. The decorative faceplate is available in white ABS or AISI 316 stainless steel, suitable for spas with higher aesthetic or corrosion resistance requirements. Sealing complies with IPX8 protection for permanent submersion.

Performance Specs

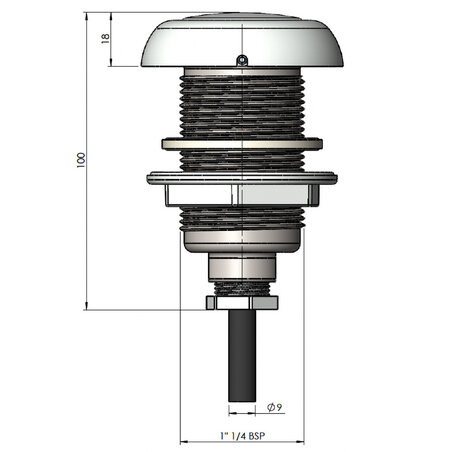

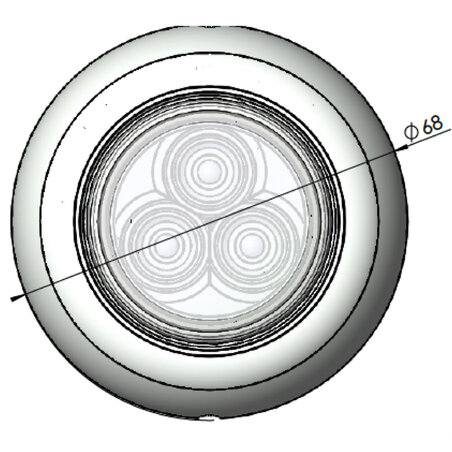

The LumiPlus Micro operates at 12 V AC, with RGB DMX versions at 24 V DC. Power consumption remains low at 4 W, with luminous output up to 315 lumens for white and warm white versions. The beam angle of 36 degrees with wide lens ensures even light spread without harsh hotspots. Service life is rated L70 at 50,000 hours, ensuring long term stability. Maximum installation depth is 2 meters, with water temperature tolerance up to 40 degrees Celsius. Detailed electrical and dimensional data are defined in the manufacturer technical sheets [oai_citation:0‡Datasheet_40765_40765WW_64554_40766_40766WW_64555_EN_2024_03.pdf](sediment://file_000000001a10720aa172cd6113165ce2) [oai_citation:1‡Dimensions_40765_64554_40765WW_EN_2024_03.pdf](sediment://file_000000004f0071f4ab1624a6283fbf47).

Compliance and Safety

LumiPlus Micro complies with EN 60598 2 18 for underwater luminaires and IEC 364 7 702 for pool and spa electrical installations. It is a Class III low voltage device and must be operated exclusively with a safety isolating transformer. Chemical resistance parameters are clearly defined for chlorine, bromine, salt electrolysis, and pH stability, ensuring predictable operation in treated spa water.

Getting the Best Results

Usage Guidance

Install one LumiPlus Micro projector approximately every 5 square meters of water surface for light colored spas. For darker finishes or stainless steel surfaces, increase projector density. Install the unit roughly 400 mm below water level, oriented away from direct eye line. Always ensure the projector is fully submerged before powering on and connected to a correctly rated safety transformer.

Professional Tips

• Do ensure all cable penetrations are sealed using IP68 rated systems.
• Do leave sufficient cable length to allow future extraction without draining the spa.
• Do not operate the projector outside water.
• Do not exceed specified chemical concentration limits.
• Do not use universal sealing compounds not approved for ABS.

Reliability You Can Trust at LordsWorld

When you purchase LumiPlus Micro from LordsWorld, you receive an original AstralPool product backed by expert technical support and EU compliant logistics. Our team verifies compatibility for technical items when needed and may contact you before dispatch to avoid installation errors. Secure checkout, fast EU shipping, and post sale support ensure your project moves forward without friction.

Common Questions

Is LumiPlus Micro suitable only for spas?

It is optimized for spas and compact pools but can also be used in prefabricated or small residential pools where space is limited.

Can RGB versions integrate with existing controllers?

Yes. RGB versions are compatible with LumiPlus Eco, Top, LED App, ModBUS Connect, and DMX systems depending on the model.

Does the LED require replacement?

No. The LED source is sealed and non replaceable. When service life is reached, the full unit is replaced.

Is it safe for saltwater systems?

Yes, within the defined limit of 6 g per liter NaCl.

Available Options

• 40765 White light, 5700 K, ABS faceplate
• 40765WW Warm white light, 3000 K, ABS faceplate
• 40766 White light, 5700 K, AISI 316 stainless steel faceplate
• 40766WW Warm white light, 3000 K, AISI 316 stainless steel faceplate

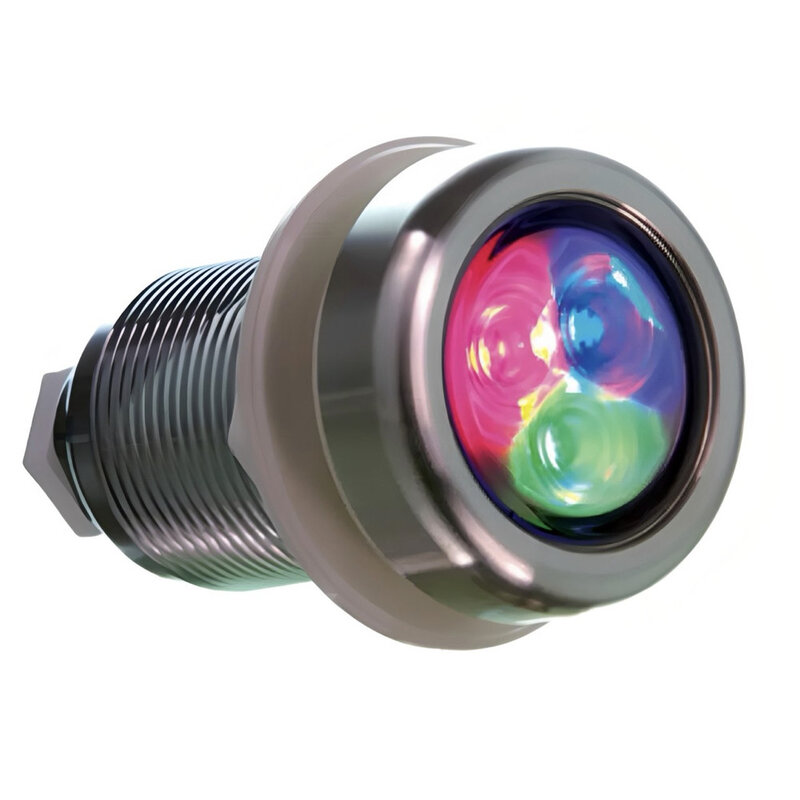

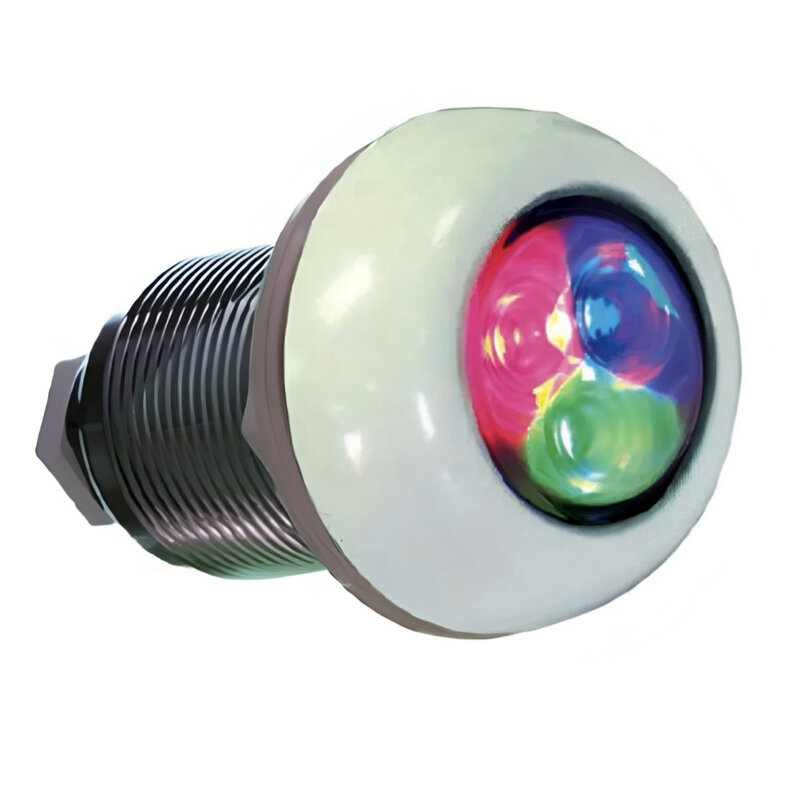

• 64554 RGB multicolor, ABS faceplate
• 64555 RGB multicolor, AISI 316 stainless steel faceplate
• 64559 RGB DMX, ABS faceplate
• 64560 RGB DMX, AISI 316 stainless steel faceplate
