Astralpool Spotlight Lumiplus Design For Public Pools

Why This Specific Product Stands Out

• Design driven aesthetics, available with Pure White or Stainless Steel effect decorative rings.
• High luminous performance, up to 4,320 lumens for white and warm white versions.
• Flexible lighting choice, cool white 5700K, warm white 3000K, or RGB multicolor.
• Public pool compatibility, designed for controlled chlorine, bromine, salt, and pH ranges.
• Wide controller support, compatible with ECO, TOP, wireless, App, Modbus Connect, and DMX systems depending on version.

Technical Excellence and Build Quality

Materials and Construction

• PPS and PA body for structural resistance.
• ABS plus IMD faceplate for long term aesthetic stability.
• Asymmetric lens for controlled light distribution.
• Thermal protection via internal flasher system.

Performance Specifications

• Rated voltage: 12 V AC, 50 to 60 Hz.
• Power: 32 W across all variants.
• Service life: L70 50,000 hours.
• Maximum water temperature: 40 C.
• Maximum installation depth: 2 m.
• Protection rating: IPX8.
• Cable: 2.5 m H07RN F 2 x 1.5 mm2.

Compliance and Safety

• Designed for public pool use.
• Maximum chlorine concentration: 2 mg per liter.
• Maximum bromine concentration: 5 mg per liter.
• Maximum salt concentration: 6 g per liter.
• Pool water pH range: 7.2 to 7.6.
• Energy class according to EU 2019 2015.
• Suitable for salt water pools.

Getting the Best Results

For correct illumination, install one LumiPlus Design projector every 25 square meters of water surface. For dark colored pools or stainless steel pools, increase the number of projectors per square meter.

The projector must always be installed fully underwater. A compatible niche is required and is not included.

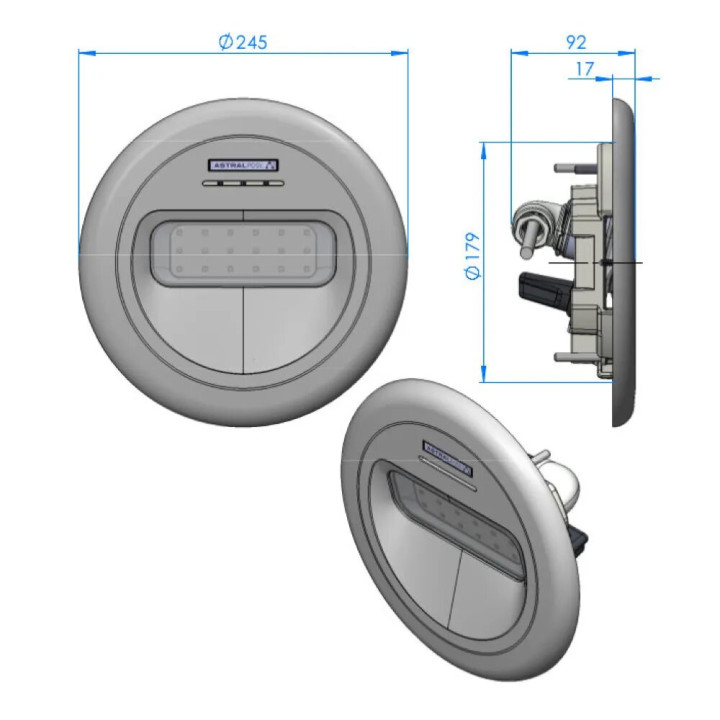

• Do verify niche diameter between 180 and 190 mm before purchase.
• Do use compatible controllers for RGB and RGB DMX versions.
• Do respect chemical concentration limits.
• Do not install outside water.
• Do not exceed maximum installation depth.

Reliability You Can Trust at LordsWorld

At LordsWorld, we supply only original Fluidra products. Our technical team verifies compatibility when needed, especially for public pool installations. Secure checkout, fast EU shipping, and expert support are standard.

If you have doubts about niche compatibility or control systems, contact us before ordering. For complex installations, our team may reach out prior to dispatch to confirm specifications.

Common Questions

Is the niche included
No. A compatible niche must be purchased separately.

Is this suitable for salt water pools
Yes, up to 6 g per liter of NaCl.

Can RGB versions be controlled remotely
Yes, with compatible ECO, TOP, wireless, App, Modbus Connect, or DMX controllers depending on version.

What is the recommended coverage
One projector every 25 square meters of water surface.

Available Options

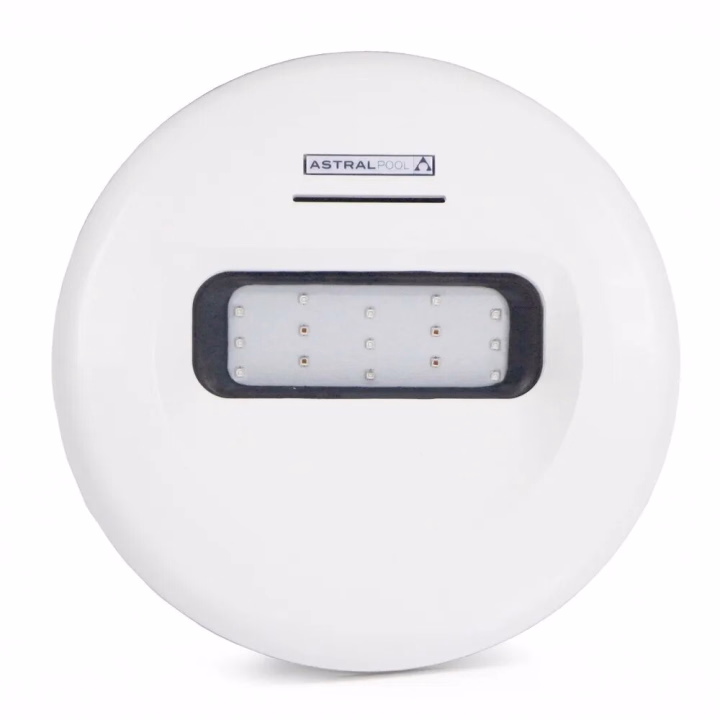

• 59807, White light 5700K, Pure White decorative ring, 4,320 lm, ON OFF control.
• 59807WW, Warm White light 3000K, Pure White decorative ring, 4,320 lm, ON OFF control.

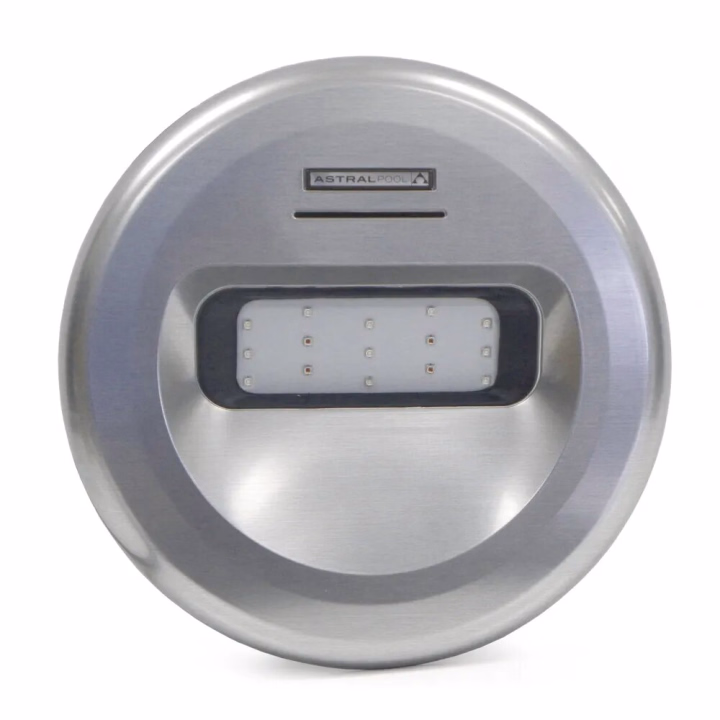

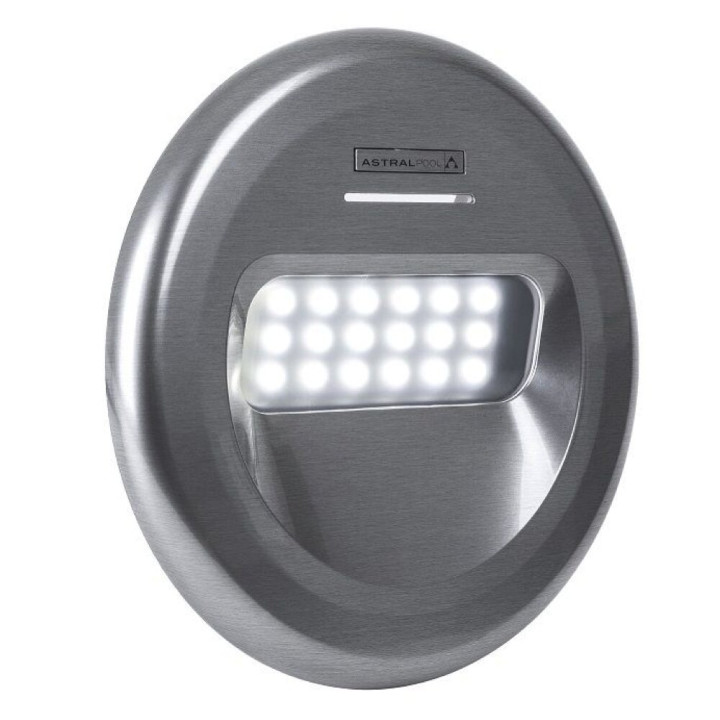

• 59805, White light 5700K, Stainless Steel effect ring, 4,320 lm, ON OFF control.
• 59805WW, Warm White light 3000K, Stainless Steel effect ring, 4,320 lm, ON OFF control.

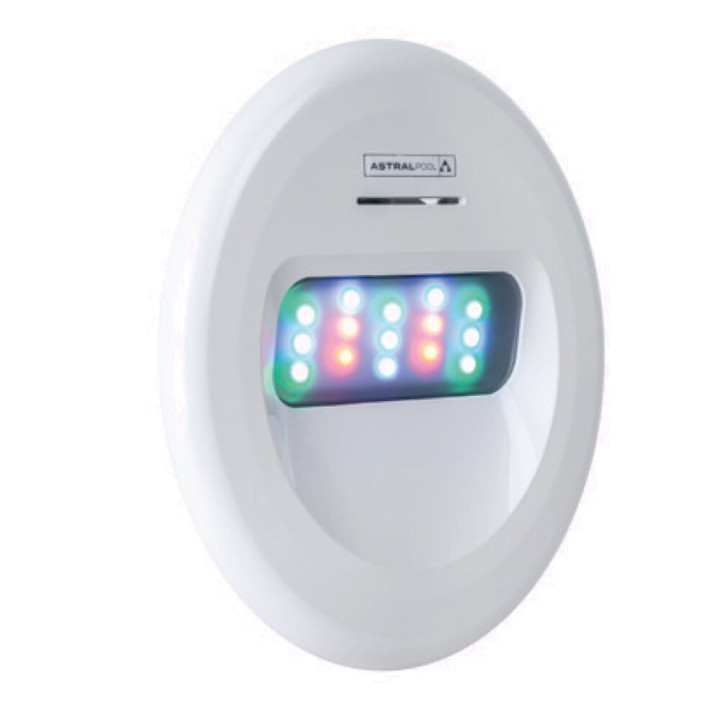

• 59803, RGB multicolor, Pure White decorative ring, 2,544 lm, compatible with ECO, TOP, App, Modbus, DMX.
• 59801, RGB multicolor, Stainless Steel effect ring, 2,544 lm, compatible with ECO, TOP, App, Modbus, DMX.
