Astralpool Emotion E Essential Range Private Spa

Experience the Difference: Versatility in Every Position

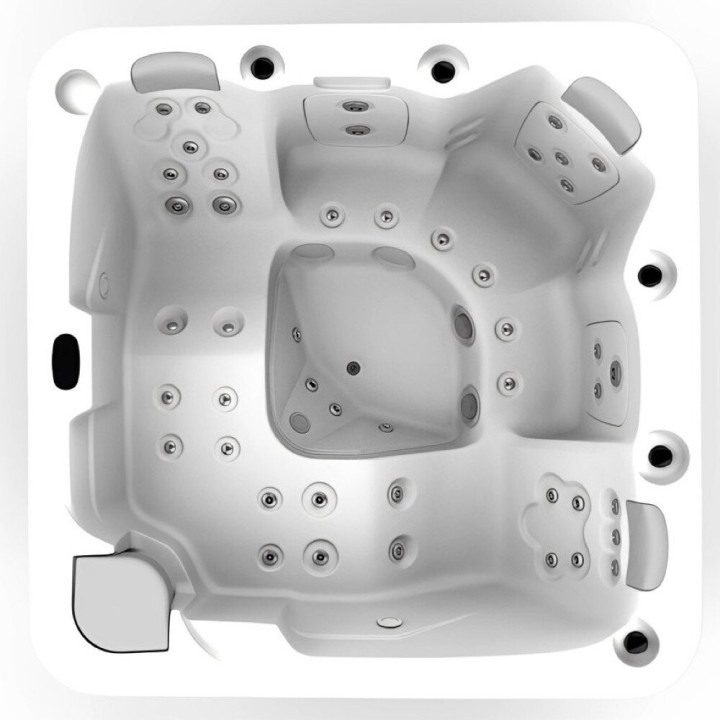

Relaxation begins the moment you lie back into one of the two ergonomic loungers. Many compact spas offer only one lounger, forcing users to take turns. The Emotion E allows two people to enjoy a full body massage at the same time while other users relax in the upright seats.

The massage system combines 32 stainless steel water jets with 12 air injectors. Water jets deliver focused pressure to the back, shoulders, and calves. Air injectors create a lighter bubble massage that stimulates circulation and improves comfort during longer sessions.

The Balboa TP600 control panel allows you to adjust temperature, filtration cycles, and massage intensity directly from inside the spa. In the background, the integrated ozonator continuously improves water sanitation, reducing the need for heavy chemical dosing.

The spa structure relies on a high resistance metallic frame rather than wood or plastic supports. This rigid structure keeps the shell stable, eliminates movement under load, and ensures a solid feel every time you enter the spa.

Why the Emotion E Layout Works Better

This configuration suits couples and families who want a full massage circuit without increasing installation space.

Structured Technical Specifications

• Brand AstralPool
• Model Emotion E Essential Range
• Product Type Private hydromassage spa
• Dimensions 216 x 216 x 90 cm
• Capacity 5 persons
• Seating layout 3 seats plus 2 loungers
• Water volume 930 L
• Empty weight 327 kg
• Full operating weight 1257 kg
• Water jets 32 stainless steel jets
• Air injectors 12
• Headrests 3
• Massage pump 1.8 kW (2.5 HP)
• Air massage pump 400 W
• Filtration pump 200 W
• Electric heater 3 kW
• Control system Balboa TP600
• Structure High resistance metallic frame
• Base Insulating ABS
• Sanitization Ozonator
• Chromotherapy 1 LED spotlight
• Electrical supply 230 V
• Power requirement 3400 W
• Installation Portable spa or built in version without cabinet

Installation and Operation Guidance

• Install the spa on a reinforced concrete slab at least 10 cm thick.
• Provide a dedicated electrical circuit protected by a 16 A differential switch.
• Maintain water pH between 7.2 and 7.4.
• Clean filtration cartridges every two to three weeks.
• Keep the isothermal cover closed when the spa is not in use to reduce heat loss.

Configuration Structure

Standard Equipment Included

• 32 stainless steel hydromassage jets
• 12 air injectors
• Balboa TP600 digital control panel
• Ozonator sanitation system
• High resistance metallic structure
• Insulating ABS base
• Isothermal thermal cover
• 1 LED chromotherapy spotlight

Cabinet Families

• Built in structure recessed installation without cabinet
• Graphite cabinet dark composite exterior panels
• Thunder cabinet grey textured composite panels

Optional Equipment

• EcoSpa double thermal insulation
• LumiPlus chromotherapy LED expansion
• Bluetooth audio system

SKU Mapping

Warranty Coverage

• Structure warranty 15 years
• Acrylic surface warranty 10 years
• Components warranty 2 years

LordsWorld Technical Supply

LordsWorld supplies AstralPool wellness equipment across Europe with direct factory sourcing and technical verification before dispatch. Our team confirms cabinet finish, insulation configuration, and electrical compatibility before the order enters production so buyers receive the correct configuration for their installation environment.
