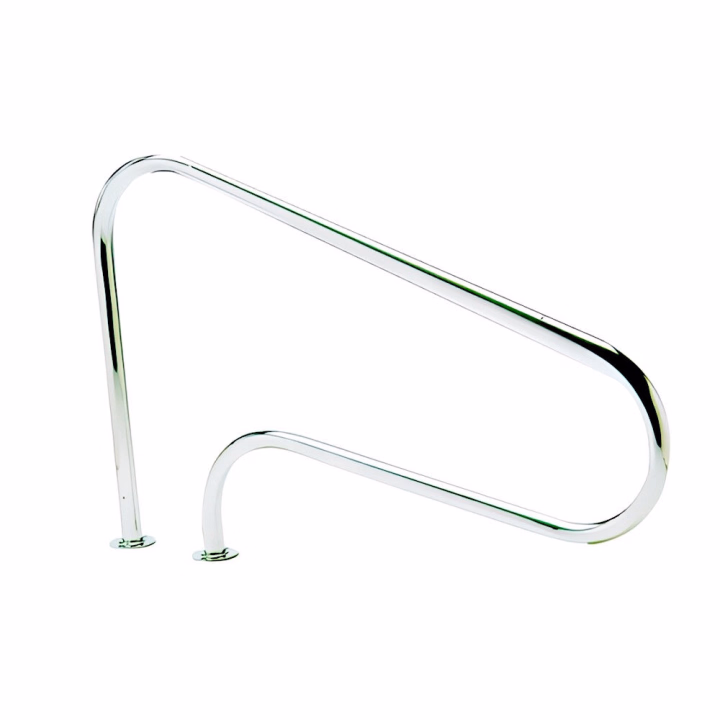

Astralpool Pool Exit Handle With External Anchorage

Compatibility and Exclusions

• Compatible with concrete pools, tiled pools, and reinforced pool decks.
• Suitable for chlorine treated pools and saltwater pools when water chemistry remains controlled.
• Works with standard pool deck anchoring systems designed for stainless steel rails.
• Model 07780 requires embedding anchors within the deck structure.
• Model 07781 installs using external base plates supplied with gaskets, screws, and wall plugs.
• Not intended for installation on unstable wooden decks or thin composite panels without reinforcement.
• Avoid direct exposure to concentrated chemical dosing near the rail.

Experience the Difference During Daily Pool Use

Without a stable exit point, swimmers often rely on slippery pool edges or nearby equipment to climb out of the water. This increases the risk of slipping or placing stress on the pool coping.

With the AstralPool exit handle installed beside the pool edge, swimmers hold a firm stainless steel rail while stepping out of the water. The ergonomic curve allows a natural grip and balanced body movement. The result is a controlled and safer exit experience, particularly helpful for children, elderly swimmers, or users carrying flotation equipment.

Performance depends on correct installation, balanced pool chemistry, and periodic cleaning of stainless steel surfaces. When maintained properly, AISI 316L steel resists corrosion even in demanding aquatic environments.

Making an Informed Choice

Users installing rails during new pool construction often choose the embedding version 07780 for a flush integrated finish. Renovation projects usually prefer the base plate version 07781 because installation is faster and does not require structural embedding.

Reasons This Pool Exit Handle Stands Out

• Marine grade AISI 316L stainless steel improves corrosion resistance in aquatic environments.
• Polished surface creates a smooth grip and easier cleaning.
• Large 43 mm diameter tube provides a secure handhold even with wet hands.
• Curved geometry supports natural movement while exiting the pool.
• Two installation configurations support both new construction and retrofit projects.

Technical Excellence and Build Quality

Materials and Construction

• Material: Polished AISI 316L stainless steel
• Tubular diameter: 43 mm
• Wall thickness: 1.2 mm
• Finish: Polished stainless steel

Performance Specifications

• Overall length: 1250 mm
• Vertical height: 800 mm
• Tube specification: Ø 43 x 1.2 mm
• Anchor spacing: 203 mm

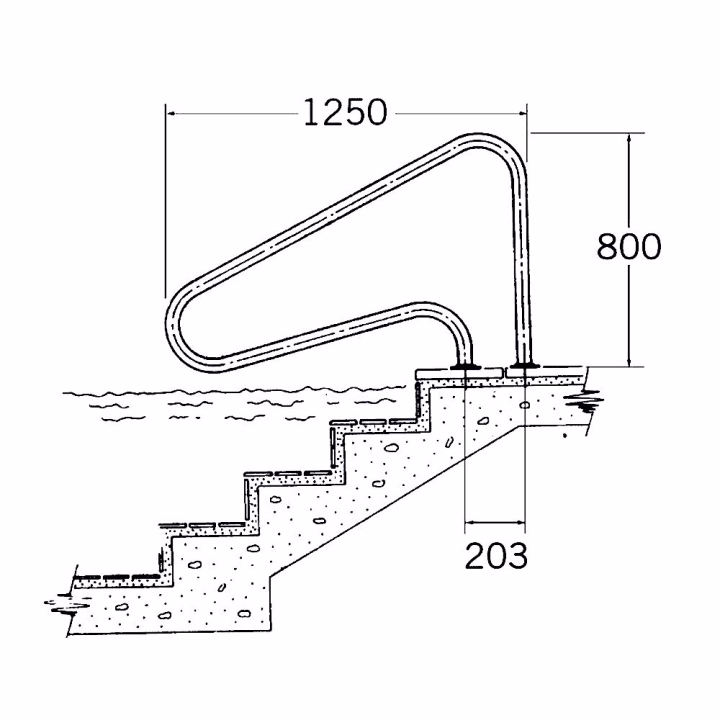

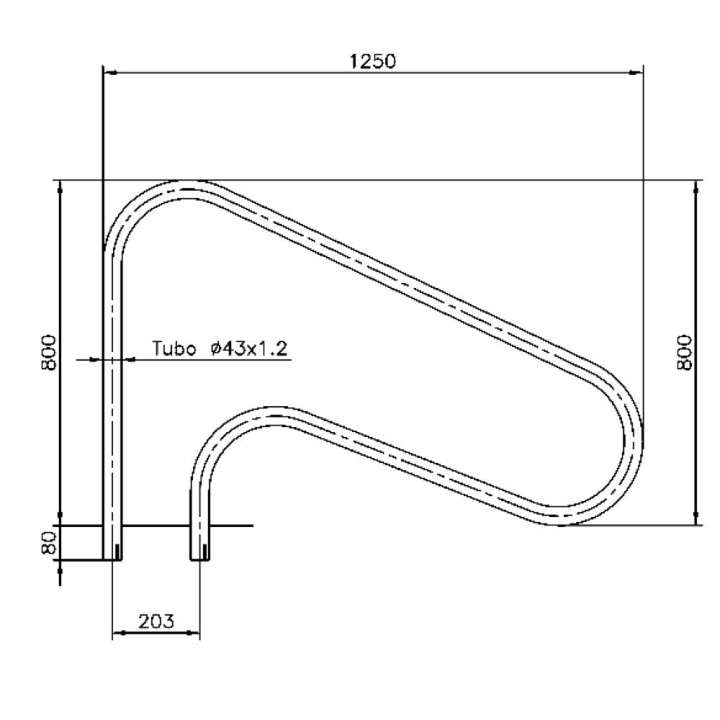

The technical drawing illustrates the rail geometry and installation points. The diagram shows the 1250 mm length and 800 mm height layout used for ergonomic support during pool exit.

Compliance and Safety

• Material standard: AISI 316 stainless steel for aquatic environments
• Designed for pool installations requiring corrosion resistant accessories
• Suitable for residential and commercial pool applications when installed according to pool safety standards

Extractable Specifications

• Brand: AstralPool
• Product type: Pool exit handle
• Models: 07780, 07781
• Material: AISI 316L stainless steel
• Tube diameter: 43 mm
• Tube thickness: 1.2 mm
• Height: 800 mm
• Length: 1250 mm
• Installation type 07780: Embedded anchor installation
• Installation type 07781: External base plates with gaskets screws and wall plugs

Equivalence Mapping

• Replaces: Standard stainless steel pool exit rails
• Alternative to: Generic pool grab rails made from AISI 304 steel
• Not the same as: Pool ladders or step rails installed inside the pool basin

Getting the Best Results

Correct installation and maintenance ensure long service life for stainless steel pool accessories.

Installation Guidance

• Verify pool deck strength before drilling or embedding anchors.
• Position the rail where swimmers naturally exit the pool.
• Ensure anchors align with the 203 mm spacing.
• Tighten fittings evenly to avoid stress on the steel tube.

Professional Tips

• Clean stainless steel weekly to remove salts and chemical residues.
• Avoid dosing chlorine or shock chemicals near stainless steel accessories.
• Prevent deposits of dust, salts, or chemical residues on the metal surface.
• If stains appear, clean with non abrasive metal cleaner or diluted nitric acid 10 to 15 percent, then rinse with fresh water.
• Maintain stable pH and disinfectant levels in pool water.
• Ensure daily water recirculation to reduce deposits on submerged components.

Reliability You Can Trust at LordsWorld

LordsWorld supplies this exact AstralPool pool exit handle with secure EU shipping and professional support. For technical pool accessories our team often reviews installation context before dispatch to confirm compatibility with the pool structure and anchoring system.

Common Questions

Is AISI 316L stainless steel suitable for saltwater pools?

Yes. AISI 316L offers improved resistance to corrosion in saltwater environments when water chemistry remains balanced.

What is the difference between model 07780 and 07781?

Model 07780 uses embedded anchors installed within the pool deck structure. Model 07781 includes external base plates with screws and gaskets for surface installation.

Does the handle come as a pair?

This product is supplied as a single grab rail designed for one side of the pool exit area.

How often should stainless steel accessories be cleaned?

Weekly cleaning is recommended to remove chemical residues and maintain corrosion resistance.

Available Options

• 07780, embedding installation version
• 07781, external base plate installation version with fixing kit
