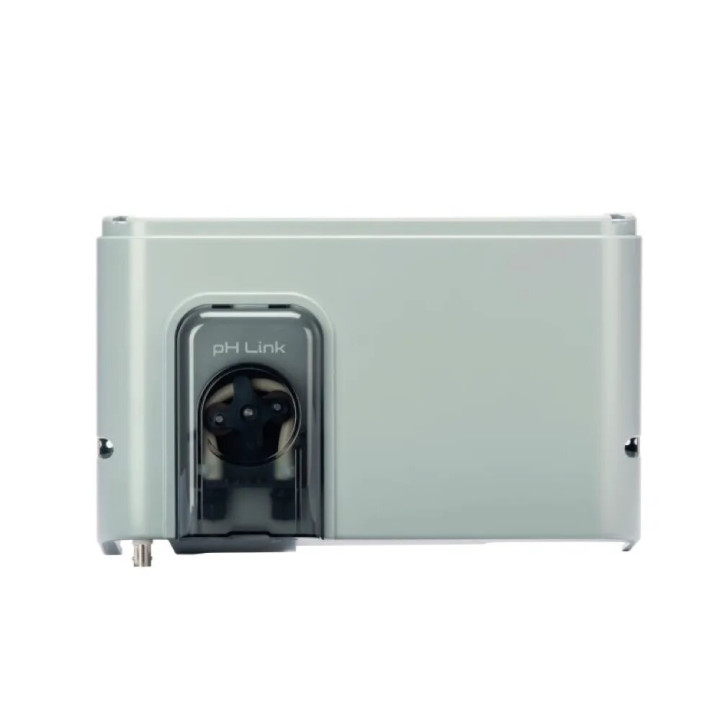

Zodiac Swimming Pool pH Dosing System pH Link

Key Benefits

• Automatic pH and/or chlorine regulation for balanced water 24/7
• Highly accurate measurements with double-junction glass body probes
• Energy-efficient peristaltic pumps for precise dosing
• Integrated with eXO® iQ for centralized control and Wi-Fi connectivity
• Reduces chemical consumption and minimizes user error
• Visual alerts and safety features to prevent overdosing

Main Functions

pH Link regulates the water's pH by injecting acid based on probe readings, maintaining levels between 7.0 and 7.6. Dual Link adds ORP regulation to control chlorine production via the salt cell, based on water demand. This ensures a consistent and healthy bathing environment with minimal maintenance.

Technical Features

• Measurement scale: 0.0 - 12.0 pH / 100 - 1000 mV (Dual Link)
• Measurement accuracy: 0.1 pH / 10 mV
• Dosing substance: pH Minus (acid)
• Probe type: Combined process probe, double junction, glass body
• Max water volume: 150 m³
• Peristaltic pump flow: 1.2 L/h
• Max back pressure: 1.5 bar
• Module dimensions: 30.5 x 18.1 x 11.5 cm

How to Use It

Install the module on the eXO® iQ control panel. The included POD kit must be placed vertically after filtration and heating. Calibrate probes before use using buffer solutions (pH 4, pH 7, ORP 470 mV). For effective operation, regularly clean and recalibrate the probes. Monitor readings via the eXO® interface or iAquaLink™ app.

Why Choose This Product?

Designed by Zodiac for seamless integration, the pH Link and Dual Link offer advanced automation and accuracy. Reduce chemical waste, protect your equipment, and enjoy clear, safe water every day. Ideal for both residential and commercial installations.

Safety, Storage & Eco Info

• Never store acid beneath electronics; keep in a ventilated, safe space.
• Only use with compatible Zodiac eXO® systems.
• Eco-friendly operation through optimized chemical usage and low-energy dosing pumps.

FAQs

• Can I install this myself?
  Installation must be performed by qualified technicians to maintain warranty and ensure safety.
• What does ORP mean?
  ORP (Oxidation Reduction Potential) measures water's ability to sanitize effectively, indicating chlorine effectiveness.
• What if the pool pH is too high?
  The peristaltic pump will inject acid to bring the level back to the setpoint (default 7.2).
• Is Wi-Fi setup required?
  Wi-Fi is optional but enables remote control via the iAquaLink™ app.

Why Shop with LordsWorld

We offer expert support, secure checkout, authentic Zodiac equipment, and fast EU shipping. Trust us to deliver the best water management solutions for your pool.

Support & Assistance

For compatibility concerns or installation guidance, please contact us before purchase. If not, we will contact you prior to dispatching technical equipment.

Available Variants

• pH Link (WW000176) – pH Regulation Only
• Dual Link (WW000177) – pH + ORP (chlorine) Regulation

Legal Note

Conforms to CE safety standards. Installation and calibration must be performed as per Zodiac technical guidelines. 2-year warranty on pH probes, 1-year on ORP sensors.

Key Characteristics

• Integrated dosing and regulation system
• Compatible with eXO® iQ salt chlorinators
• pH and ORP probe calibration included
• 150 m³ max treated volume
• LCD display with alert indicators
• Accessories: POD kit, probe, buffer solution, tubing
