Astralpool Exit Handle Easy Swim Out For Pools

Designed for These Situations

• Pools with Roman steps or built in entry zones where a ladder does not provide the right hand support.
• Renovation projects replacing corroded, stained, or loose pool exit rails.
• Salt chlorination pools where AISI 316 stainless steel is preferred for better resistance.
• Private and commercial pools with frequent daily use.
• Projects needing either embedded installation or surface fixing with flange or plate.
• Pool layouts needing either the wider 800 x 800 mm geometry or the more compact 470 x 800 mm geometry.
• Installations where a split ladder or step assembly needs independent hand support.

Compatibility and Exclusions

• Compatible with in ground pools with suitable structural support.
• Suitable for concrete, tiled, and similar rigid deck installations.
• Suitable for chlorine pools and saltwater pools when water chemistry remains controlled.
• Models 05541, 05542, and 05543 are surface fixed versions supplied with fixing hardware.
• Model 05540 is the version designed to be embedded in concrete.
• Not suitable for soft ground, thin unsupported panels, or above ground pools without reinforced anchoring.
• Not intended to replace a full pool ladder where steps are required.

Experience the Difference in Daily Pool Use

Good exit rails improve the final movement out of the water. Instead of relying on a slippery pool edge or a narrow ladder handle, the swimmer reaches a stable 43 mm tube and lifts with better control. This matters for children, older users, hospitality pools, and any installation where comfort and safety need to work together.

The Easy Swim Out range gives you more freedom than a one piece ladder. You can choose an embedded version during construction, a flange fixed version for retrofit work, or the compact 470 x 800 mm models where space or step geometry requires a narrower layout. The polished AISI 316 stainless steel surface also supports easier cleaning when pH, disinfectant, and dissolved salt levels remain under control.

A Clear Table to Assist User Make Informed Choice Based on Product

Choose 05540 when the pool is under construction and the handrails need to be embedded in concrete. Choose 05541 when you need the wide 800 x 800 mm version with flange fixing on a finished deck. Choose 05542 when the project needs the compact 470 x 800 mm version with standard fixing plate. Choose 05543 when the same compact format is needed but with rectangular flange geometry for the specific installation layout.

Why This Specific Product Stands Out

• The full range uses polished AISI 316 18/8/2 stainless steel for better durability in aquatic environments.
• The 43 mm tube diameter gives a solid and comfortable grip during exit.
• The range covers both embedded and surface mounted installation methods.
• The two size formats help match the rail to different step designs and deck layouts.
• The fixing versions are supplied complete with gaskets, screws, and wall plugs.
• The polished finish helps reduce residue retention when cleaning is carried out correctly.

Technical Excellence and Build Quality

Materials and Construction

These AstralPool exit grab rails are made from polished AISI 316 18/8/2 stainless steel with 43 mm tubular construction. This steel grade is widely chosen for poolside hardware because it performs better in humid, chlorinated, and salt exposed environments when routine maintenance is respected.

Performance Specs

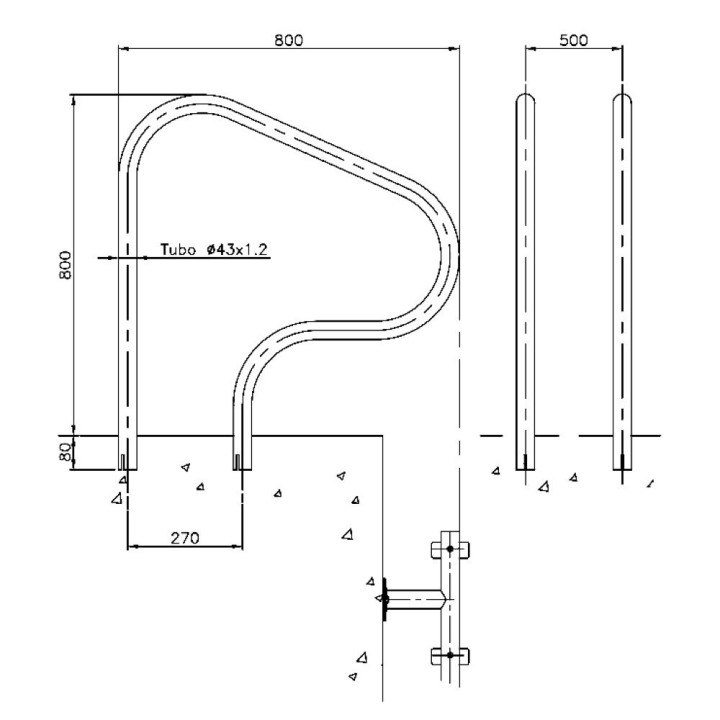

• 05540: 800 x 800 mm, embedded in concrete, pair, weight 8.40 kg, volume 0.10 M³.
• 05541: 800 x 800 mm, flange fixed with screws, pair, weight 9.27 kg, volume 0.10 M³.
• 05542: 470 x 800 mm, fixing plate with screws, pair, weight 6.97 kg, volume 0.08 M³.
• 05543: 470 x 800 mm, rectangular flange with screws, pair, weight 7.61 kg, volume 0.08 M³.

Compliance and Safety

These rails are intended for pool access use in residential and commercial settings. Long term safety depends on correct anchoring, suitable substrate, regular inspection, and proper control of water chemistry, disinfectant level, and dissolved salts around the stainless steel surface.

Extractable Specs Block

• Brand: AstralPool
• Product Type: Pool exit grab rails
• Range Name: Easy Swim Out
• Material: Polished AISI 316 18/8/2 stainless steel
• Tube Diameter: 43 mm
• Configuration: Pair of grab rails

Equivalence Mapping

• Replaces: corroded pool exit rails, worn AISI 304 rails, old embedded or bolt fixed hand supports.
• Alternative to: generic stainless pool exit handles, surface mounted grab rails, split ladder support rails.
• Not the same as: full pool ladders, disability lifts, or one piece ladder assemblies.

Getting the Best Results

Correct maintenance matters as much as steel grade. Stainless steel used near pools performs best when the surface stays clean, smooth, and free from dry deposits.

• Carry out an initial visual inspection to detect oxidation caused by external chemical agents.
• Start with weekly cleaning, then adjust the interval according to site conditions.
• Avoid formation of dry residue deposits such as salts and other solids.
• Do not carry out manual or shock chemical dosing near stainless steel parts.
• Avoid deposits of salts, dust, dirt, and concrete residue on the metal surface.
• Avoid contact with iron contamination and other incompatible materials.
• Clean with tap water. If small rust stains or deposits appear, use a non abrasive metal cleaner or nitric acid diluted to 10 to 15 percent, then rinse with fresh water and dry carefully with a cotton cloth.
• Pay special attention to interstitial areas, anchor zones, and the water line area.
• Keep pH, disinfectant, and dissolved salt levels under control.
• Carry out daily water recirculation to help prevent deposits on submerged accessories.
• Ensure proper air recirculation and dehumidification in indoor installations.
• Carry out at least one annual preventive maintenance stop for the accessories and the installation in general.

Reliability You Can Trust at LordsWorld

LordsWorld supplies this exact AstralPool exit handle range with EU shipping and support for compatibility checks before dispatch when required. For technical accessories, our team reviews the intended mounting logic, embedded or surface fixed, to reduce ordering errors and help match the correct version to the pool structure.

Common Questions

What is the difference between 05540 and 05541?

Both are 800 x 800 mm grab rail pairs. The difference is the mounting method. 05540 is embedded in concrete. 05541 is fixed with flange and screws.

What is the difference between 05542 and 05543?

Both are 470 x 800 mm paired exit rails in polished AISI 316 stainless steel. 05542 uses a standard fixing plate layout. 05543 uses a rectangular flange layout.

Are fixing accessories included?

Yes. The fixing versions are supplied with gaskets, screws, and wall plugs.

Are these suitable for saltwater pools?

Yes, provided water chemistry remains controlled and the rails are cleaned regularly to prevent salt deposits and surface contamination.

Can these replace a ladder?

No. These products provide hand support for entry and exit, but they do not replace a full ladder where steps are needed.

Available Options

• 05540: Exit grab rails model 800 x 800 mm, embedded in concrete.
• 05541: Exit grab rails model 800 x 800 mm, flange and screws.
• 05542: Exit grab rails model 470 x 800 mm, fixing plate and screws.
• 05543: Exit grab rails model 470 x 800 mm, rectangular flange and screws.

Variant Identification for Catalog Clarity

• Variant 05540: Wide format, construction phase installation, embedded in concrete.
• Variant 05541: Wide format, retrofit or finished deck installation, flange fixed.
• Variant 05542: Compact format, standard plate fixed installation.
• Variant 05543: Compact format, rectangular flange fixed installation.
